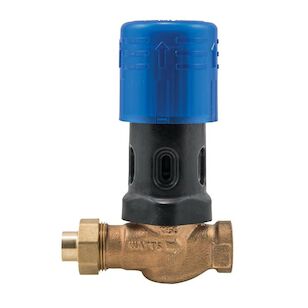

1/2 IN Bronze Dial Set Pressure Indicator High Capacity Water Feed Regulator Union Solder Inlet Connection
1/2 IN Bronze Dial Set Pressure Indicator High Capacity Water Feed Regulator Union Solder Inlet Connection
1/2 IN Bronze Dial Set Pressure Indicator High Capacity Water Feed Regulator Union Solder Inlet Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$322.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi8 to 21
Depth2.44"
Height7.38"
IndustryPlumbing
Inlet Connection Size1/2"
Inlet Connection TypeUnion Solder
MaterialBronze
Maximum Temperature Deg F212
Maximum Working Pressure Psi100
Outlet Connection Size1/2"
Outlet Connection Thread TypeFPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesBD1156F
Standard Reduced Pressure Setting Psi15
StrainerYes
Strainer MaterialStainless Steel
Valve StyleStandard
Weight1.57 lbs.
Width5.63"
Shipping Dimensions (L x W x H)2.437" x 5.63" x 7.38"
Features & Benefits
- Dial set pressure indicator
- High capacity
- Fast fill purge lever
- Tight seating check valve
Documents
Marketing Information
This 1/2 inch dial set high capacity feed water pressure regulator is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of an easy-to-read dial pressure setting indicator, bronze body with union solder inlet and NPT threaded outlet connections, tight seating check valve, fast-fill purge lever for manual purging, and a stainless steel strainer. It has high capacity performance and a simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems. The maximum pressure is 100 psi (6.9 bar).
1/2 IN Bronze Dial Set Pressure Indicator High Capacity Water Feed Regulator Union Solder Inlet Connection
BrandWATTS®
MFG #0386418
Keller #958944
My Part ##
Last Ordered#
$322.50Â /Â ea
