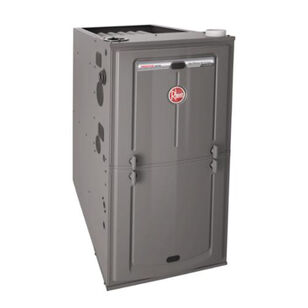

Rheem® Ovation Series R96VA0702317MSA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 96% AFUE
Rheem® Ovation Series R96VA0702317MSA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 96% AFUE
Rheem® Gas Furnace, R96VA Series, 70000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 9 A Amperage Rating, 1050 cu-ft/min Cooling, 1015 cu-ft/min Heating CFM Rating, 1/2 hp Rating, 96% AFUE Rating, 20.51 kW Wattage, 1 Phase, 60 Hz Frequency Rating, Multi-Position Configuration, Connection Type: 1/2 in NPT, Natural/Propane Gas Fuel Type, 8 in W x 11 in Dia Blower Size, 17-1/2 in W x 34 in H x 29-5/8 in D Cabinet Dimensions, ECM Motor Type, Up to 3 ton Tonnage, Direct Spark Ignition Type, 40 - 70 deg C Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,682.92 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating96%
Amperage Rating9
ApplicationFor residential applications
Blower Size8 " W x 11 " Dia
Cabinet Dimensions17-1/2 " W x 34 " H x 29-5/8 " D
CFM Rating1050 cu-'/min Cooling, 1015 cu-'/min Heating
ConfigurationMulti-Position
Connection Type1/2 " NPT
Frequency Rating60
Fuel TypeNatural/Propane Gas
HP Rating1/2
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating70000
Motor TypeECM
Phase1
SeriesR96VA
Temperature Rise40 - 70
TonnageUp to 3
Voltage Rating115
Wattage20.51
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2015 Certified
Features & Benefits
- Four way multi-poise design Two stages of operation to save energy and maintain optimal comfort level Variable speed blower motor technology provides ultimate humidity control, quieter sound levels and year round energy savings PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity PlusOne water management system with patented blocked drain sensor Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Pre marked hoses insures proper system drainage Vent with 2 or 3 in PVC Hemmed edges on cabinet and doors Quarter turn fasteners for tool less access Integrated control boards feature dip switches for easy system set up Self priming condensate trap Solid bottom included Compatible with 1 or two-stage thermostats, for optimal performance a two-stage thermostat is recommended 1st design Series Revision marketing (first time release)
Documents
Rheem® Ovation Series R96VA0702317MSA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 96% AFUE
BrandRheem®
MFG #R96VA0702317MSA
Keller #960409
My Part ##
Last Ordered#
$5,682.92 / ea
