LEG 101-530NL 1/8 LF BL VLV&HANDLE
LEG 101-530NL 1/8 LF BL VLV&HANDLE

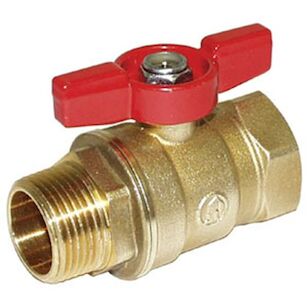

Legend Valve Mini Ball Valve, Model: T-900MxF-TNL, MNPT x FNPT Connection, 1/8 in Nominal, 600 lb/sq-in CWP, 125 lb/sq-in WSP, T-Handle Operator, 7 Cv Flow Coefficient (Cv), Material Standard: ASTM A-510, Brass Body, Dyneon TFM PTFE Seat, Brass Stem, FKM Fluorocarbon Seal, Brass Trim, Aluminum Handle, Yes, 1.87 in L x 1.36 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$25.78Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialBrass
Connection TypeMNPT x FNPT
Dimensions1.87 " L x 1.36 " H
Flow Coefficient (Cv)7
Handle MaterialAluminum
IndustryPlumbing
Material StandardASTM A-510
ModelT-900MxF-TNL
Nominal Size1/8
Operator TypeT-Handle
Pressure Rating600 lb/sq-" CWP, 125 lb/sq-" WSP
Seal MaterialFKM Fluorocarbon
Seat MaterialDyneon TFM PTFE
Stem MaterialBrass
Trim MaterialBrass
Additional Information
ANSI Z21.15, ANSI/ASME B1.20.1, ANSI/NSF 61, C/US CSA Certified, ISO 9002, U.S. federal public law 111-380
Features & Benefits
- Space-saving male-by-female end connections are ideal for confined piping installations T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve Bottom-loaded blowout-proof stem is a maintenance-free, dual O-ring seal design, eliminating the need to tighten a packing nut Improved 3M Dyneon TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly Dyneon TFM PTFE anti-friction thrust washer and washer, ASTM A-510 UNS G10060 dacromet-coated steel ASTM A-510 UNS G10060 with PVC resin lock handle nut, CW510 UNS C28500 forged brass end adapter Commercial-grade die-cast-coated aluminum handle
