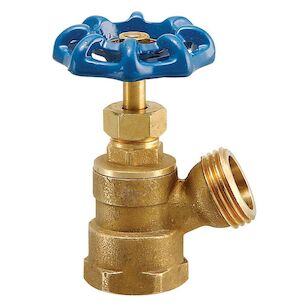

3/4 IN Lead Free Boiler Drain Shutoff Female IPS Angle
3/4 IN Lead Free Boiler Drain Shutoff Female IPS Angle
3/4 IN Lead Free Boiler Drain Shutoff Female IPS Angle
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$39.25Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body PatternAngle
Depth4"
Height2"
Hydronic Item TypeBoiler Drain Valve
IndustryPlumbing
Inlet Connection Size3/4"
Inlet Connection Size Metric20 mm
Inlet Connection TypeFemale Threaded
Inlet Thread TypeIPS
MaterialBrass
Maximum Operating Temperature Deg F180
Maximum Pressure Psi200
Maximum Temperature Deg F180
Maximum Working Pressure Psi200
Outlet Connection Size3/4"
Outlet Connection Thread TypeGHT
Outlet Connection TypeMale Threaded
Prop 65 WarningYes
SeriesLFBD
Weight0.52 lbs.
Width4"
Shipping Dimensions (L x W x H)4" x 4" x 2"
Features & Benefits
- Lead free construction
- Angle pattern
- Female IPS inlet
- Hose thread outlet
Documents
Marketing Information
This 3/4 inch lead free angle pattern boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch female IPS inlet, PTFE stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).
3/4 IN Lead Free Boiler Drain Shutoff Female IPS Angle
BrandWATTS®
MFG #0123624
Keller #962362
My Part ##
Last Ordered#
$39.25Â /Â ea
