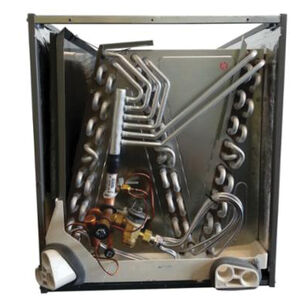

Rheem® Ovation Series RCF2417STAMCA Evaporator Coil, Cased N Coil, 2 ton, 600 to 900 cfm, Aluminum
Rheem® Ovation Series RCF2417STAMCA Evaporator Coil, Cased N Coil, 2 ton, 600 to 900 cfm, Aluminum
Rheem® Evaporator Coil, RCF Series, Multi-Position Configuration, 600 to 900 cfm Rating, 2 ton Tonnage, R-410A Refrigerant Type, 2-Row, 16 FPI, 4.56 sq-ft Coil Rating, Cased N Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat, Aluminum, Gray, 20 in H x 17-1/2 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,228.92 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor gas and oil furnace units
CFM Rating600 to 900
Coil Rating2-Row, 16 FPI, 4.56 sq-'
Coil TypeCased N
ColorGray
ConfigurationMulti-Position
Connection Size3/8 ", 3/4 "
Connection TypeSweat
Dimensions20 " H x 17-1/2 " W x 21-11/16 " D
IndustryHVAC
MaterialAluminum
Refrigerant TypeR-410A
SeriesRCF Series
Tonnage2
Additional Information
AHRI Certified|ANAB Certified|cULus Listed
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature (2) sets of 3/4 in NPT condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet and equalizer connections Approved for system application with variety of Rheem® outdoor units Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal set material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-coil design maximizes performance and minimizes height required at installation Major series feature set change, performance change Minor series, component change, cost reduction, non-performance changes
Rheem® Ovation Series RCF2417STAMCA Evaporator Coil, Cased N Coil, 2 ton, 600 to 900 cfm, Aluminum
BrandRheem®
MFG #RCF2417STAMCA
Keller #962364
