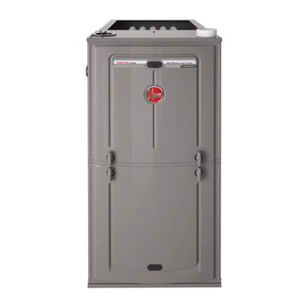

Rheem® Ovation Series R97VA085M521KSA Gas Furnace, Up to 5 ton, 84000 Btu/hr Input BTU, 115 VAC, 3/4 hp, 97% AFUE
Rheem® Ovation Series R97VA085M521KSA Gas Furnace, Up to 5 ton, 84000 Btu/hr Input BTU, 115 VAC, 3/4 hp, 97% AFUE
Rheem® Gas Furnace, R97V Series, 84000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 12 A Amperage Rating, 1750 cu-ft/min Cooling, 1062 cu-ft/min Heating CFM Rating, 3/4 hp Rating, 97% AFUE Rating, 24.62 kW Wattage, 1 Phase, 60 Hz Frequency Rating, Modulating Downflow/Horizontal Configuration, Connection Type: 1/2 in NPT, Natural/Propane Gas Fuel Type, 10 in W x 11 in Dia Blower Size, 21 in W x 34 in H x 29-5/8 in D Cabinet Dimensions, ECM Motor Type, Up to 5 ton Tonnage, Direct Spark Ignition Type, 20 - 50 deg F Low Fire, 50 - 80 deg F High Fire Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$8,076.46 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating97%
Amperage Rating12
ApplicationFor residential applications
Blower Size10 " W x 11 " Dia
Cabinet Dimensions21 " W x 34 " H x 29-5/8 " D
CFM Rating1750 cu-'/min Cooling, 1062 cu-'/min Heating
ConfigurationModulating Downflow/Horizontal
Connection Type1/2 " NPT
Frequency Rating60
Fuel TypeNatural/Propane Gas
HP Rating3/4
Ignition TypeDirect Spark
Input BTU Rating84000
Motor TypeECM
Phase1
SeriesR97V
Temperature Rise20 - 50 deg F Low Fire, 50 - 80 deg F High Fire
TonnageUp to 5
Voltage Rating115
Wattage24.62
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2008 Certified
Features & Benefits
- Modulating operation to save energy and maintain optimal comfort level Variable speed blower motor technology provides ultimate humidity control, quieter sound levels and year round energy savings PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity PlusOne water management system with patented blocked drain sensor Heat exchanger is removable for improved serviceability Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Pre marked hoses insures proper system drainage Vent with 2 or 3 in PVC Hemmed edges on cabinet and doors Quarter turn fasteners for tool less access Integrated control boards feature dip switches for easy system set up Self priming condensate trap Manual shut-off valve For optimal performance an EcoNet control center is recommended, must be paired with an EcoNet enabled heat pump or air conditioner, for a fully communicating HVAC system Modulating function - when used with an EcoNet control center modulating thermostat, modulation rate between 40% and 100% of total capacity Multistage function - when used with a single-stage thermostat, furnace functions as a three stage furnace operating at 40%, 65% and 100% of total capacity 1st design Series Revision marketing (first time release)
Rheem® Ovation Series R97VA085M521KSA Gas Furnace, Up to 5 ton, 84000 Btu/hr Input BTU, 115 VAC, 3/4 hp, 97% AFUE
BrandRheem®
MFG #R97VA085M521KSA
Keller #962507
My Part ##
Last Ordered#
$8,076.46 / ea
