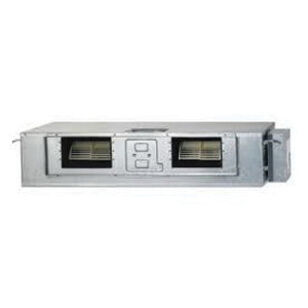

Samsung AC024JNHDCH/AA Mini-Split Heat Pump, 208 to 230 V, 12 A, 24000 Btu/hr Btu, 1 ph, Aluminum/Copper
Samsung AC024JNHDCH/AA Mini-Split Heat Pump, 208 to 230 V, 12 A, 24000 Btu/hr Btu, 1 ph, Aluminum/Copper
Samsung Mini-Split Heat Pump, 208 to 230 V, 12 A, 125 W, 60 Hz, 1 ph, 24000 Btu/hr, 540 to 740 cfm Rating, 12.1 EER, 20 SEER, HSPF: 10.5, Flared Connection Type, Inverter Driven Twin BLDC Rotary Compressor, R-410A, 20 A Fuse, 2 ton Tonnage, 28 to 36 dBA, Aluminum/Copper, 61 to 90 deg F, 45-1/4 in Overall Width, 12-9/16 in Overall Height, Additional Information: 6.13 pt/hr Dehumidification, 18 FPI Fins per Inch, 18-7/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,239.92Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information6.13 pt/hr Dehumidification, 18 FPI Fins per ", 18-7/8 " D
Amperage Rating12
ApplicationFor residential and commercial applications
BTU Rating24000
CFM Rating540 to 740
Compressor TypeInverter Driven Twin BLDC Rotary
Connection TypeFlared
Dehumidification6.13 pt/hr
Dimensions12-9/16" H x 45-1/4" W x 18-7/8" D
EER Rating12.1
Fins per Inch18 FPI
Frequency Rating60
Fuse Rating20
HSPF Rating10.5
IndustryHVAC
MaterialAluminum/Copper
Overall Height12-9/16
Overall Width45-1/4
Phase1
Power Rating125
Refrigerant TypeR-410A
SEER Rating20
Sound Level28 to 36
Temperature Rating61 to 90
Tonnage2
Voltage Rating208 to 230
Additional Information
cETLus Intertek Listed
Features & Benefits
- Horizontal discharge airflow Low ambient control Auto restart after power loss The indoor unit shall have a removable EEPROM that stores system programming information, unit name and other data All indoor unit addressing and option settings shall be done digitally, the indoor unit does not contain rotary dials or setting switches The indoor unit shall have a built-in condensate pump as standard with a 29 in lift (from bottom of unit) Smart Inverter maintains temperature without frequently shutting off using 70% less energy Auto changeover 10 years compressor, 10 years parts, 1 years limited labor 9 A rated load, 11.7 A minimum circuit
