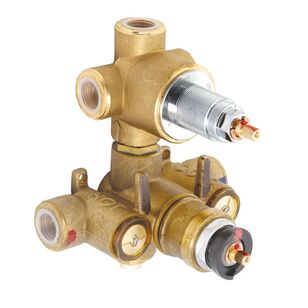

NEWPORT BRASS® LuxTherm® Luxtherm Series 1-743 Thermostatic Valve, 1/2 in Nominal, NPT, 3 -Port/Way, 8 gpm, 60 psi
NEWPORT BRASS® LuxTherm® Luxtherm Series 1-743 Thermostatic Valve, 1/2 in Nominal, NPT, 3 -Port/Way, 8 gpm, 60 psi
NEWPORT BRASS® LuxTherm® Thermostatic Valve, Luxtherm Series, 1/2 in Nominal, NPT Connection, 60 psi Pressure, 8 gpm Flow Rate, 3.15 in Inlet to Outlet Length, 6.34 in Top to Inlet Center, 3 Ports/Ways, Brass Body, 100 deg F, Dimensions: 5.43 in W x 4.66 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$898.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandNEWPORT BRASS®
Body MaterialBrass
Connection TypeNPT
Dimensions5.43 " W x 4.66 " D
Flow Rate8
IndustryPlumbing
Inlet to Outlet Length3.15
Nominal Size1/2
Number of Ports/Ways3
Pressure Rating60
SeriesLuxtherm Series
Temperature Rating100
Top to Inlet Center6.34
Shipping Dimensions (L x W x H)8" x 8.25" x 6.5"
Additional Information
ASME A112.18.1 Specified|ASSE 1016 Specified|CEC Compliant|CSA B125.1 Certified|ICC/ANSI A117.1 Specified|IPC Certified|US Federal and State Material Regulations
Features & Benefits
- No finish Solid brass construction Rough-in with integrated three-way diverter with share function ports one and two and shut-off control Built-in check valves with service stops Flow rate of 8 gpm at 60 psi Provides anti-scald protection and temperature regulation High-temperature safety stop ensures water temperature maximum is 100 deg F 1/2 in NPT female thread (inlet and outlet) valve body Mounting tabs located on rough-in for secure installation option Requires Newport Brass thermostatic trim (many options available, sold separately)
NEWPORT BRASS® LuxTherm® Luxtherm Series 1-743 Thermostatic Valve, 1/2 in Nominal, NPT, 3 -Port/Way, 8 gpm, 60 psi
BrandNEWPORT BRASS®
MFG #1-743
Keller #963290
My Part ##
Last Ordered#
$898.00 / ea
