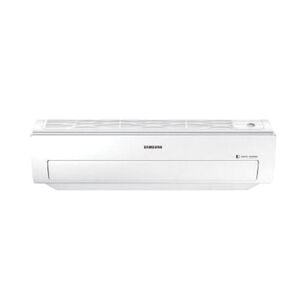

Samsung AC024MNADCH/AA Indoor Split System, 208/230 V, 12.5 A, 24000 Btu/hr Cooling, 27000 Btu/hr Heating BTU, 1 ph
Samsung AC024MNADCH/AA Indoor Split System, 208/230 V, 12.5 A, 24000 Btu/hr Cooling, 27000 Btu/hr Heating BTU, 1 ph
Samsung Indoor Split System, 208/230 V, 12.5 A, 55 W, 60 Hz, 1 ph, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 2190 cfm, 10.21 EER Rating, 18.3 SEER, 10.8 HSPF, Connection Type: Flared, 20 A Fuse Rating, Inverter Drive, 32/35/39/43 dBA Sound Level, Wall Mounting, Steel, Galvanized, 61 to 90 deg F Cooling, <=80 deg F Heating, 11-9/16 in Overall Length, 41-7/8 in Overall Width, 11-7/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,073.60Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating12.5
BTU Rating24000 Btu/hr Cooling, 27000 Btu/hr Heating
CFM Rating2190
Color/FinishGalvanized
Connection TypeFlared
Drive TypeInverter
EER Rating10.21
FinishGalvanized
Frequency Rating60
Fuse Rating20
HSPF Rating10.8
IndustryHVAC
MaterialSteel
Model NumberAC0
Mounting TypeWall
Overall Height11-7/8
Overall Length11-9/16
Overall Width41-7/8
Phase1
Power Rating55
SEER Rating18.3
Sound Level32/35/39/43
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208/230
Additional Information
AHRI 210/240|cETLus Intertek Listed|UL 1995
Features & Benefits
- Wall-mounted evaporator The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire Auto-restart after power loss The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit. The indoor unit shall have a removable EEPROM that stores system programming information, unit name, and other data The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night. (Automatic or manual activation with dry contact signal)
Documents
Marketing Information
CAC High Wall units connect to CAC "universal" outdoor unit models AC0***XADCH/AA and -40deg cooling-only outdoor units (AC0**MXSCCC/AA). 12K, 18K, and 24K btu/h High-Wall units will use the Whisper (triangle) type chassis, and 30K and 36K btu/h High-Wall units will use the Max chassis when connected to CAC "universal" outdoor unit models. 18K and 24K btu/h systems will use the Whisper (triangle) type chassis, and 30K and 36K btu/h systems will use the Max chassis when connected to the -40deg CAC cooling-only outdoor unit.
Samsung AC024MNADCH/AA Indoor Split System, 208/230 V, 12.5 A, 24000 Btu/hr Cooling, 27000 Btu/hr Heating BTU, 1 ph
BrandSamsung
MFG #AC024MNADCH/AA
Keller #963851
My Part ##
Last Ordered#
$2,073.60Â /Â ea
