AHRI 210/240 10227626|cETLus Listed|UL 94/1995

• The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire Auto restart after power loss The indoor unit shall have a removable EEPROM that stores system programming information, unit name and other data The indoor unit have easy access to wire, pipe and drain connections via access panel on front of unit for easier installation and service The indoor unit heat exchanger shall be mechanically bonded fin to copper tube Control signal shall be a DDC-type signal Interconnect control wire between outdoor and indoor unit shall be 16 AWG x two shielded Controls shall integrate with a BMS system The system shall integrate with the Samsung NASA Controls Solution No additional interface modules/adapters are required when connecting to Samsung NASA DVM S central control options The compressor shall be hermetically sealed, inverter controlled twin BLDC rotary-type Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit Soft start to reduce current demand during compressor start

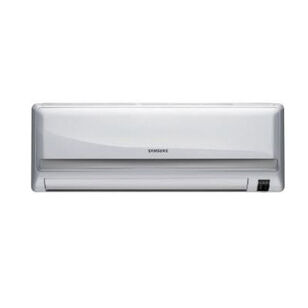

CAC high wall units connect to CAC universal outdoor unit models AC0XADCH/AA and -40 deg cooling only outdoor units (AC0MXSCCC/AA). 12K, 18K and 24K Btu/hr high wall units will use the Whisper (triangle) type chassis and 30K and 36K Btu/hr high wall units will use the Max chassis when connected to CAC universal outdoor unit models. 18K and 24K Btu/hr systems will use the Whisper (triangle) type chassis and 30K and 36K Btu/hr systems will use the max chassis when connected to the -40 deg CAC cooling only outdoor unit.
