Rheem®

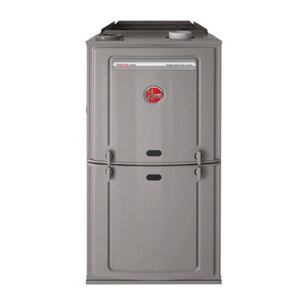

Rheem® R802VA050317MSA Gas Furnace, Up to 3 ton, 50000 Btu/hr Input BTU, 115 VAC, 1200 cfm Cooling, 890 cfm Heating
Rheem®
Rheem® R802VA050317MSA Gas Furnace, Up to 3 ton, 50000 Btu/hr Input BTU, 115 VAC, 1200 cfm Cooling, 890 cfm Heating
MFG #R802VA050317MSA
Item #965463
Mfr. Part #R802VA050317MSA
UPC #66202138533
Rheem® Gas Furnace, R802V Series, 50000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 10 A Amperage Rating, 1200 cfm Cooling, 890 cfm Heating CFM Rating, 1/2 hp Rating, 80 % AFUE Rating, 15 kW Wattage, 1 ph Phase, 60 Hz Frequency Rating, Upflow/Horizontal Configuration, Connection Type: 1/2 in NPT, Natural, Propane Gas Fuel Type, 11 in Dia x 7 in W Blower Size, 17-1/2 in W x 28-1/16 in D x 34 in H Cabinet Dimensions, Variable Speed, ECM Motor Type, Up to 3 ton Tonnage, 50 VA Transformer Rating, Direct Spark Ignition Type, 25 to 55 deg F Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,215.71 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating80
Amperage Rating10
ApplicationFor residential applications
Blower Size11 " Dia x 7 " W
Cabinet Dimensions17-1/2 " W x 28-1/16 " D x 34 " H
CFM Rating1200 cfm Cooling, 890 cfm Heating
ConfigurationUpflow/Horizontal
Connection Type1/2 " NPT
Frequency Rating60
Fuel TypeNatural, Propane Gas
HP Rating1/2
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating50000
Motor TypeVariable Speed, ECM
Phase1
SeriesR802V
Temperature Rise25 to 55
TonnageUp to 3
Transformer Rating50
Voltage Rating115
Wattage15
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2008 Certified
Features & Benefits
- Two stages of operation to save energy and maintain optimal comfort level Variable speed blower motor technology provides ultimate humidity control, quieter sound levels and year round energy savings Three way multi-poise design UF/HZ PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity Heat exchanger is removable for improved serviceability, aluminized steel construction provides maximum corrosion-resistance and thermal fatigue reliability Solid doors provide quiet operation Solid bottom Insulated blower compartment Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Hemmed edges on cabinet and doors 1/4 turn door knobs for tool less access Integrated control boards feature dip switches for easy system set up QR code for quick access to product information from your smart phone or tablet Compatible with 1 or two-stage thermostats, for optimal performance a two-stage thermostat is recommended 1st design Series Revision marketing (first time release)
Rheem® R802VA050317MSA Gas Furnace, Up to 3 ton, 50000 Btu/hr Input BTU, 115 VAC, 1200 cfm Cooling, 890 cfm Heating
