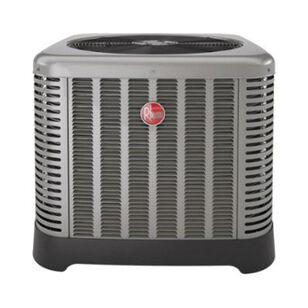

Rheem® Optimum Series RA1360AJ1NA Air Conditioner, 2 ton, 208-230 V
Rheem® Optimum Series RA1360AJ1NA Air Conditioner, 2 ton, 208-230 V
Rheem® Air Conditioner, RA13 Series, RA1360A Model, 2 ton Nominal Capacity, 208-230 V Voltage Rating, 233 W Wattage, 1/5 hp Rating, 820 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 3870 cfm Rating, 11 EER Rating, 13 SEER Rating, 1 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 77.7 dBA Sound Level, 18.8 sq-ft Face Area, 22 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 31 in H x 33-3/4 in W x 33-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,972.27 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
CFM Rating3870
Compressor TypeScroll
Dimensions31 " H x 33-3/4 " W x 33-3/4 " D
EER Rating11
Face Area18.8
FinishGalvanized/Powder-Coated
Fins per Inch22
Frequency Rating60
HP Rating1/5
Liquid Line Size3/8
MaterialSteel
ModelRA1360A
Nominal Capacity2
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed820
SEER Rating13
SeriesRA13 Series
Sound Level77.7
Suction Line Size7/8
Voltage Rating208-230
Wattage233
Additional Information
AHRI Certified|cULus Listed|Energy Guide Certified
Features & Benefits
- First design major series First design minor series New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics, increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice-optimizes airflow and reduces unit sound Rust-resistant screws-confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space-3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access-15 in W, industry leading corner service access makes repairs easier and faster Two fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the high and low-pressure External gauge port access allows easy connection of low loss gauge ports One row condenser coil-makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal Service trays-hold fasteners or caps during service calls QR code-provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
Rheem® Optimum Series RA1360AJ1NA Air Conditioner, 2 ton, 208-230 V
BrandRheem®
MFG #RA1360AJ1NA
Keller #966047
My Part ##
Last Ordered#
$5,972.27 / ea
