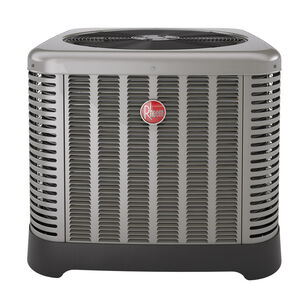

Rheem® RP1448AJ1NA Heat Pump, 4 ton, 48000 Btu/hr BTU, 208-230 V, 29 A, 1/5 hp, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® RP1448AJ1NA Heat Pump, 4 ton, 48000 Btu/hr BTU, 208-230 V, 29 A, 1/5 hp, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® Heat Pump, Classic™ RP14-A Series, RP1448 Model, 208-230 V Voltage Rating, 29 A Amperage Rating, 14.07 kW Power Rating, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 825 rpm Rotational Speed, 48000 Btu/hr BTU Rating, 4055 cfm Rating, 11.5 EER Rating, 14 SEER Rating, 8.2 HSPF Rating, Scroll Compressor Type, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 50 A Fuse Rating, 19.8 sq-ft Face Area, 20 FPI Coil Rating, Direct Drive Type, 4 ton Tonnage, 77 dBA Sound Level, 1 Number of Stages, Steel, Galvanized/Powder-Coated, 33-3/4 in L x 33-3/4 in W x 35 in H Dimensions, 1 Number of Rows Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,742.05 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information1 Number of Rows
Amperage Rating29
BTU Rating48000
CFM Rating4055
Coil Rating19.8 sq-' Face Area, 20 FPI
Compressor TypeScroll
Dimensions33-3/4 " L x 33-3/4 " W x 35 " H
Drive TypeDirect
EER Rating11.5
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating50
HP Rating1/5
HSPF Rating8.2
Liquid Line Size3/8
MaterialSteel
ModelRP1448
Number of Stages1
Phase1
Power Rating14.07
Refrigerant TypeR-410A
Rotational Speed825
SEER Rating14
SeriesClassic RP14-A Series
Sound Level77
Suction Line Size7/8
Tonnage4
Voltage Rating208-230
Warranty10 Year Conditional Compressor and Parts
Shipping Dimensions (L x W x H)36.68" x 36.68" x 36.75"
Additional Information
AHRI Certified|cULus Listed|Energy Guide|ISO 9001:2008
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Improved tubing design reduces vibration and stress, making unit quieter and reducing opportunity for leaks Optimized defrost characteristics - decrease defrosting and provide better home comfort Powder-coated paint finish - for a long-lasting professional finish Optimized reversing valve sizing improves shifting performance for quieter unit operation and increased life of the system Enhanced mufflers help to dissipate vibration energy for quieter unit operation Scroll compressor a sound abating feature added to the compressor significantly reduces noise when system transitions in and out of defrost mode Modern cabinet aesthetics - increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access Integrated heat pump lift receptacle allows standard CPVC stands to be inserted into the base PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster, the two-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access - allows easy connection of "low-loss" gauge ports, one-row condenser coil makes unit lighter and allows thorough coil cleaning to maintain out of the box performance 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal Service trays - hold fasteners or caps during service calls, QR code provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire One-design major series
