Rheem®

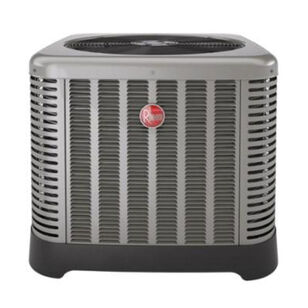

Rheem® RA1436WJ1NA Air Conditioner, 3 ton, 208-230 V, 36000 Btu/hr
Rheem®
Rheem® RA1436WJ1NA Air Conditioner, 3 ton, 208-230 V, 36000 Btu/hr
MFG #RA1436WJ1NA
Item #968499
Mfr. Part #RA1436WJ1NA
UPC #66202140997
Rheem® Air Conditioner, RA14 Series, RA1436W Model, 3 ton Nominal Capacity, 36000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 21 A Amperage Rating, 177 W Wattage, 1/6 hp Rating, 831 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 3395 cfm Rating, 13 EER Rating, 16 SEER Rating, 1 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 75 dBA Sound Level, 35 A Fuse Rating, 17.3 sq-ft Face Area, 22 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 27 in H x 33-3/4 in W x 33-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,144.09 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating21
BTU Rating36000
CFM Rating3395
Compressor TypeScroll
Dimensions27 " H x 33-3/4 " W x 33-3/4 " D
EER Rating13
Face Area17.3
FinishGalvanized/Powder-Coated
Fins per Inch22
Frequency Rating60
Fuse Rating35
HP Rating1/6
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRA1436W
Nominal Capacity3
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed831
SEER Rating16
SeriesRA14 Series
Sound Level75
Suction Line Size3/4
Voltage Rating208-230
Wattage177
Additional Information
AHRI Certified|C/US UL Listed|Energy Guide Certified|ENERGY STAR® Certified
Features & Benefits
- New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coat paint system for a long-lasting professional finish Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice-optimizes airflow and reduces unit sound Rust-resistant screws-confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space-3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access-15 in W, industry leading corner service access makes repairs easier and faster The two-fastener removable corner allows optimal access to internal unit components Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access allows easy connection of low loss gauge ports One row condenser coil-makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal Service trays-hold fasteners or caps during service calls QR code-provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire Southwest regional standard unit major series First design minor series
