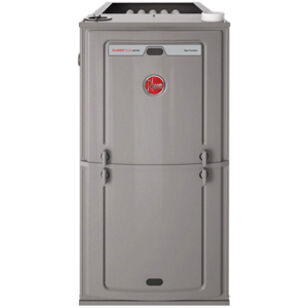

Rheem® R95TC0701317MSA Plus Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 95% AFUE, Multi-Position
Rheem® R95TC0701317MSA Plus Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 95% AFUE, Multi-Position
Rheem® Plus Gas Furnace, R95T Series, 70000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 6.8 A Amperage Rating, 1198 cu-ft/min Cooling, 1113 cu-ft/min Heating CFM Rating, 1/2 hp Rating, 95% AFUE Rating, 1 Phase, 60 Hz Frequency Rating, Multi-Position Configuration, Connection Type: 1/2 in NPT, Natural Gas, LPG Fuel Type, 5 Number of Speeds, 8 in W x 11 in Dia Blower Size, 17-1/2 in W x 34 in H x 28.8 in D Cabinet Dimensions, Up to 3 ton Tonnage, Direct Spark Ignition Type, Gray, 40 - 70 deg F Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,352.17 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating95%
Amperage Rating6.8
Blower Size8 " W x 11 " Dia
Cabinet Dimensions17-1/2 " W x 34 " H x 28.8 " D
CFM Rating1198 cu-'/min Cooling, 1113 cu-'/min Heating
ColorGray
ConfigurationMulti-Position
Connection Type1/2 " NPT
Frequency Rating60
Fuel TypeNatural Gas, LPG
HP Rating1/2
Ignition TypeDirect Spark Ignition
IndustryHVAC
Input BTU Rating70000
Number of Speeds5
Phase1
SeriesR95T
Temperature Rise40 - 70
TonnageUp to 3
Voltage Rating115
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2008 Certified
Features & Benefits
- Four-way multi-poise design, 17-1/2 in W cabinet PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity, PlusOne water management system with patented blocked drain sensor Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Pre marked hoses insures proper system drainage Replaceable collector box Hemmed edges on cabinets and doors Quarter turn fasteners for tool less access Integrated control boards feature dip switches for easy system set up Self priming condensate trap Solid bottom included With X13 motor
