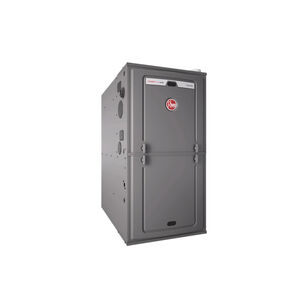

Rheem® R95TC1151524MSA Plus Gas Furnace, 112000 Btu/hr Input BTU, 115 VAC, 1 hp, 95% AFUE, Multi-Position
Rheem® R95TC1151524MSA Plus Gas Furnace, 112000 Btu/hr Input BTU, 115 VAC, 1 hp, 95% AFUE, Multi-Position
Rheem® Plus Gas Furnace, R95T Series, 112000 Btu/hr Input BTU Rating, 108000 Btu/hr Output BTU Rating, 115 VAC Voltage Rating, 14 A Minimum Circuit, 8.3 A Full Load Amperage Rating, 1748 cu-ft/min Cooling, 1524 cu-ft/min Heating CFM Rating, 1 hp Rating, 95% AFUE Rating, 1 Phase, 60 Hz Frequency Rating, Multi-Position Configuration, Connection Type: 1/2 in NPT Gas, Natural/LP Gas Fuel Type, 11 in W x 11 in Dia Blower Size, 24-1/2 in W x 34 in H x 28-13/16 in D Cabinet Dimensions, 20 A Fuse Rating, Direct Spark Ignition System
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,521.70 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating95%
Amperage Rating14 A Minimum Circuit, 8.3 A Full Load
Blower Size11 " W x 11 " Dia
Cabinet Dimensions24-1/2 " W x 34 " H x 28-13/16 " D
CFM Rating1748 cu-'/min Cooling, 1524 cu-'/min Heating
ConfigurationMulti-Position
Connection Type1/2 " NPT Gas
Frequency Rating60
Fuel TypeNatural/LP Gas
Fuse Rating20
HP Rating1
Ignition SystemDirect Spark
IndustryHVAC
Input BTU Rating112000
Output BTU Rating108000
Phase1
SeriesR95T
Voltage Rating115
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2008, ANAB Certified
Features & Benefits
- Constant torque electrically commutated motor Design Series (C) Up to five ton airflow Revision (A) Five speed ECM blower motor Four way multi-poise design PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity PlusOne water management system with patented blocked drain sensor Heat exchanger is removable for improved serviceability Aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Pre marked hoses insures proper system drainage 2 or 3 in PVC vent Replaceable collector box Hemmed edges on cabinets and doors Quarter turn fasteners for tool less access Integrated control boards feature dip switches for easy system set up Self priming condensate trap
Rheem® R95TC1151524MSA Plus Gas Furnace, 112000 Btu/hr Input BTU, 115 VAC, 1 hp, 95% AFUE, Multi-Position
BrandRheem®
MFG #R95TC1151524MSA
Keller #969100
My Part ##
Last Ordered#
$5,521.70 / ea
