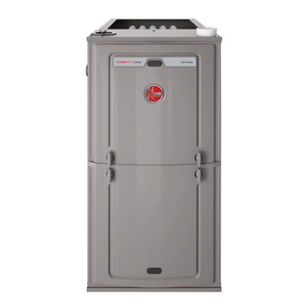

Rheem® R96TA0852521MSA Plus Gas Furnace, Up to 5 ton, 84000 Btu/hr Input BTU, 115 VAC, 1 hp, 96% AFUE, Multi-Position
Rheem® R96TA0852521MSA Plus Gas Furnace, Up to 5 ton, 84000 Btu/hr Input BTU, 115 VAC, 1 hp, 96% AFUE, Multi-Position
Rheem® Plus Gas Furnace, R96T Series, 84000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 12 A Amperage Rating, 1745 cu-ft/min Cooling, 1715 cu-ft/min Heating CFM Rating, 1 hp Rating, 96% AFUE Rating, 24.62 kW Wattage, 1 Phase, 60 Hz Frequency Rating, Multi-Position Configuration, Connection Type: 1/2 in NPT, Natural/Propane Gas Fuel Type, 5 Number of Speeds, 10 in W x 11 in Dia Blower Size, 21 in W x 34 in H x 29-5/8 in D Cabinet Dimensions, Constant Torque Motor Type, Up to 5 ton Tonnage, Direct Spark Ignition Type, 11 - 28 deg C Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,577.33 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating96%
Amperage Rating12
ApplicationFor residential applications
Blower Size10 " W x 11 " Dia
Cabinet Dimensions21 " W x 34 " H x 29-5/8 " D
CFM Rating1745 cu-'/min Cooling, 1715 cu-'/min Heating
ConfigurationMulti-Position
Connection Type1/2 " NPT
Frequency Rating60
Fuel TypeNatural/Propane Gas
HP Rating1
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating84000
Motor TypeConstant Torque
Number of Speeds5
Phase1
SeriesR96T
Temperature Rise11 - 28
TonnageUp to 5
Voltage Rating115
Wattage24.62
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2008 Certified
Features & Benefits
- Four way multi-poise design PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity PlusOne water management system with patented blocked drain sensor Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Pre marked hoses insures proper system drainage Vent with 2 or 3 in PVC Replaceable collector box Hemmed edges on cabinet and doors Quarter turn fasteners for tool less access Integrated control boards feature dip switches for easy system set up Self priming condensate trap Solid bottom included Manual shut-off valve 100% safety lock out, cool fan off delay Field selectable heat fan off delay, one hr automatic retry, power and self-test diagnostics, flame sense current diagnostics, electronic air cleaner connections 1st design Series Revision marketing (first time release)
Documents
Rheem® R96TA0852521MSA Plus Gas Furnace, Up to 5 ton, 84000 Btu/hr Input BTU, 115 VAC, 1 hp, 96% AFUE, Multi-Position
BrandRheem®
MFG #R96TA0852521MSA
Keller #970113
