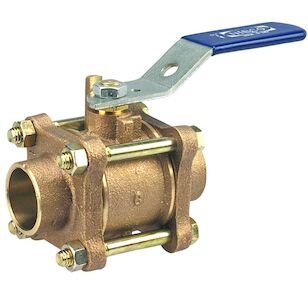

NIBCO S595YX-1-1/4-LL BRZ BALL VALVE OXY MED
NIBCO S595YX-1-1/4-LL BRZ BALL VALVE OXY MED
NIBCO®, 1-1/4 in Nominal, Connection Type: Female Solder Cup, Full Port, 600 psi CWP, 150 psi SWP, Oxygen Media, Quarter-Turn Locking Lever Handle Operator, Bronze Body, Silicon Bronze Stem, PTFE Seal, Bronze Trim, Carbon Steel Handle, Brass Ball, Hard Chrome
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$733.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeFemale Solder Cup
FinishHard Chrome
Handle MaterialCarbon Steel
IndustryPlumbing
MediaOxygen
Nominal Size1-1/4
Operator TypeQuarter-Turn Locking Lever Handle
Port TypeFull
Pressure Rating600 psi CWP, 150 psi SWP
Seal MaterialPTFE
Stem MaterialSilicon Bronze
Trim MaterialBronze
Shipping Dimensions (L x W x H)9.75" x 3.5" x 4.56"
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Full port Chrome plated brass ball, silicon bronze stem Blowout-proof stem Standard lever handle or locking lever, optional NIB-SEAL pecent Solder end connections Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-110
Marketing Information
The NIBCO pecent bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close, and bubble-tight shutoff at 600 PSI. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. Options include NIB-SEAL pecent insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
NIBCO S595YX-1-1/4-LL BRZ BALL VALVE OXY MED
BrandNIBCO®
MFG #NJ93WLB
Keller #970794
My Part ##
Last Ordered#
$733.00 / ea
