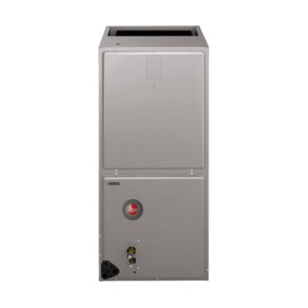

Rheem® RHMV2421HEACJA Air Handler With EEV Metering, 2 ton, 18000/24000 Btu/hr BTU, 208/240 VAC, 5.27 - 7.03 kW, 1/2 hp
Rheem® RHMV2421HEACJA Air Handler With EEV Metering, 2 ton, 18000/24000 Btu/hr BTU, 208/240 VAC, 5.27 - 7.03 kW, 1/2 hp
Rheem® Air Handler, RHMV Series, 2 ton Nominal Capacity, 18000/24000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 5.27 - 7.03 kW Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 Phase, 800 - 1600 cu-ft/min, 325 cu-ft/min Fan CFM Rating, Modulating Configuration, 20 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 7/8 in Sweat Vapor, R-410A Refrigerant Type, Steel, Pre-Painted, 21 in W x 55-1/2 in H x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,965.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor upflow, downflow, horizontal left and horizontal right applications and mobile homes
BTU Rating18000/24000
CFM Rating800 - 1600 cu-'/min, 325 cu-'/min Fan
ConfigurationModulating
Connection Type3/8 " Sweat Liquid, 7/8 " Sweat Vapor
Dimensions21 " W x 55-1/2 " H x 21-11/16 " D
FinishPre-Painted
Frequency Rating60
HP Rating1/2
IndustryHVAC
MaterialSteel
Nominal Capacity2
Phase1
Refrigerant TypeR-410A
SEER Rating20
SeriesRHMV
Voltage Rating208/240
Wattage5.27 - 7.03
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment Four leg rubber insulated wire motor mount Blower housing with integrated controls, motor and blower, slide-out design for service and maintenance convenience Field convertible for vertical upflow, vertical down flow, horizontal left hand or right hand air supply Three combustible floor base accessories fit all model sizes when required for down flow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins bonded to internally grooved copper tubing, coils are tested at the factory with an extensive refrigerant leak check, coils have copper sweat refrigerant connections Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Supply duct flanges provided as standard on air handler cabinet Front refrigerant and drain connections 19-3/8 in W x 19-3/4 in D return air opening 19-1/2 in supply duct 3/4 in auxiliary, primary drain connection 10 x 10 in blower Minor - major Series Constant cu-ft/min variable speed (ECM) motor 50 deg F maximum electric heat rise
Rheem® RHMV2421HEACJA Air Handler With EEV Metering, 2 ton, 18000/24000 Btu/hr BTU, 208/240 VAC, 5.27 - 7.03 kW, 1/2 hp
BrandRheem®
MFG #RHMV2421HEACJA
Keller #970993
My Part ##
Last Ordered#
$4,965.00 / ea
