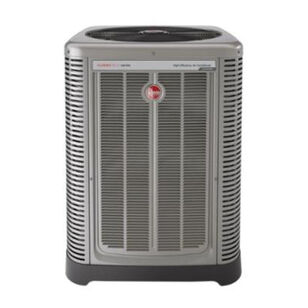

Rheem® Eclipse Series RA1724AJ2CB Air Conditioner, 2 ton, 208-230 V, 24000 Btu/hr
Rheem® Eclipse Series RA1724AJ2CB Air Conditioner, 2 ton, 208-230 V, 24000 Btu/hr
Rheem® Air Conditioner, RA17 Series, RA1724A Model, 2 ton Nominal Capacity, 24000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 16 A Amperage Rating, 7.03 kW Wattage, 1/5 hp Rating, 850 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 3326 cfm Rating, 13 EER Rating, 17 SEER Rating, 2 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 72.5 dBA Sound Level, 25 A Fuse Rating, 19.8 sq-ft Face Area, 20 FPI Fins per Inch, 125 deg F Temperature Rating, Steel, Galvanized/Powder-Coated, 35 in H x 35-3/4 in W x 35-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,499.22 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating16
BTU Rating24000
CFM Rating3326
Compressor TypeScroll
Dimensions35 " H x 35-3/4 " W x 35-3/4 " D
EER Rating13
Face Area19.8
FinishGalvanized/Powder-Coated
Fins per Inch20
Frequency Rating60
Fuse Rating25
HP Rating1/5
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRA1724A
Nominal Capacity2
Number of Stages2
Phase1
Refrigerant TypeR-410A
Rotational Speed850
SEER Rating17
SeriesRA17 Series
Sound Level72.5
Suction Line Size3/4
Temperature Rating125
Voltage Rating208-230
Wattage7.03
Additional Information
AHRI Certified|cULus Listed|Energy Guide Certified
Features & Benefits
- EcoNet® enabled product, the EcoNet® smart home system provides advanced air and water control for maximum energy savings and ideal comfort New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coat paint finish for a long-lasting professional finish Modern cabinet aesthetics increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice-optimizes airflow and reduces unit sound Rust-resistant screws-confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space-3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access-15 in W, industry leading corner service access makes repairs easier and faster The two-fastener removable corner allows optimal access to internal unit components Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the high and low-pressure External gauge port access allows easy connection of low loss gauge ports Single row condenser coil-makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal Service trays-hold fasteners or caps during service calls QR code-provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire High and low-pressure standard on all models
Rheem® Eclipse Series RA1724AJ2CB Air Conditioner, 2 ton, 208-230 V, 24000 Btu/hr
BrandRheem®
MFG #RA1724AJ2CB
Keller #971064
