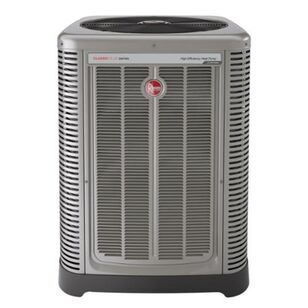

Rheem® GPU14M RP1736AJVCA Heat Pump, 3 ton, 36000 Btu/hr BTU, 208-230 V, 22 A, 1/6 hp, 1 ph Phase, Steel
Rheem® GPU14M RP1736AJVCA Heat Pump, 3 ton, 36000 Btu/hr BTU, 208-230 V, 22 A, 1/6 hp, 1 ph Phase, Steel
Rheem® Heat Pump, Classic Plus® RP17 Series, RP1736 Model, 208-230 V Voltage Rating, 22 A Amperage Rating, 10.55 kW Power Rating, 1/6 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 910 rpm Rotational Speed, 36000 Btu/hr BTU Rating, 3270 cfm Rating, 11.5 EER Rating, 17.50 SEER Rating, 8.5 HSPF Rating, Connection Type: Sweat, Scroll Compressor Type, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 35 A Fuse Rating, 19.8 sq-ft Face Area, 20 FPI Coil Rating, Direct Drive Type, 3 ton Tonnage, 73.5 dBA Sound Level, 3 Number of Stages, Steel, Galvanized/Powder-Coated, 33-3/4 in L x 33-3/4 in W x 35 in H Dimensions, 1 Number of Rows Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,822.87 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information1 Number of Rows
Amperage Rating22
BTU Rating36000
CFM Rating3270
Coil Rating19.8 sq-' Face Area, 20 FPI
Compressor TypeScroll
Connection TypeSweat
Dimensions33-3/4 " L x 33-3/4 " W x 35 " H
Drive TypeDirect
EER Rating11.5
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating35
HP Rating1/6
HSPF Rating8.5
Liquid Line Size3/8
MaterialSteel
ModelRP1736
Number of Stages3
Phase1
Power Rating10.55
Refrigerant TypeR-410A
Rotational Speed910
SEER Rating17.50
SeriesClassic Plus RP17 Series
Sound Level73.5
Suction Line Size3/4
Tonnage3
Voltage Rating208-230
Additional Information
AHRI Certified|cULus Listed|Energy Guide|ENERGY STAR Certified|ISO 9001:2015
Features & Benefits
- EcoNet® smart home system provides advanced air and water control for maximum energy savings and ideal comfort Copeland™ scroll variable-speed compressor, this inverter-driven compressor provides three-stages of heating and cooling operation for maximum comfort and energy savings Equipped with electronic expansion valve to precisely control variable refrigerant flow New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Improved tubing design reduces vibration and stress, making unit quieter and reducing opportunity for leaks Optimized defrost characteristics - decrease defrosting and provide better home comfort Powder-coated paint finish - for a long-lasting professional finish Optimized reversing valve sizing improves shifting performance for quieter unit operation and increased life of the system Enhanced mufflers help to dissipate vibration energy for quieter unit operation Modern cabinet aesthetics - increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access Integrated heat pump lift receptacle allows standard CPVC stands to be inserted into the base PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster Two-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access - allows easy connection of "low-loss" gauge ports, one-row condenser coil makes unit lighter and allows thorough coil cleaning to maintain out of the box performance One-row condenser coil makes unit lighter and allows through coil cleaning to maintain out of the box performance
Rheem® GPU14M RP1736AJVCA Heat Pump, 3 ton, 36000 Btu/hr BTU, 208-230 V, 22 A, 1/6 hp, 1 ph Phase, Steel
BrandRheem®
MFG #RP1736AJVCA
Keller #971456
My Part ##
Last Ordered#
$12,822.87 / ea
