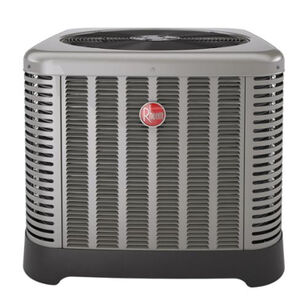

Rheem® RP1660AJ2NA Heat Pump, 5 ton, 60000 Btu/hr BTU, 208-230 V, 38 A, 1/4 hp, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® RP1660AJ2NA Heat Pump, 5 ton, 60000 Btu/hr BTU, 208-230 V, 38 A, 1/4 hp, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® Heat Pump, Classic™ RP16 Series, RP1660 Model, 208-230 V Voltage Rating, 38 A Amperage Rating, 230 W Power Rating, 1/4 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 850 rpm Rotational Speed, 60000 Btu/hr BTU Rating, 3654 cfm Rating, 12.5 EER Rating, 16 SEER Rating, Connection Type: Sweat, Scroll Compressor Type, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 60 A Fuse Rating, 28.3 sq-ft Face Area, 20 FPI Coil Rating, Direct Drive Type, 5 ton Tonnage, 75 dBA Sound Level, 2 Number of Stages, Steel, Galvanized/Powder-Coated, 35-3/4 in L x 35-3/4 in W x 45 in H Dimensions, 1 Number of Rows Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,150.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information1 Number of Rows
Amperage Rating38
BTU Rating60000
CFM Rating3654
Coil Rating28.3 sq-' Face Area, 20 FPI
Compressor TypeScroll
Connection TypeSweat
Dimensions35-3/4 " L x 35-3/4 " W x 45 " H
Drive TypeDirect
EER Rating12.5
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating60
HP Rating1/4
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRP1660
Number of Stages2
Phase1
Power Rating230
Refrigerant TypeR-410A
Rotational Speed850
SEER Rating16
SeriesClassic RP16 Series
Sound Level75
Suction Line Size7/8
Tonnage5
Voltage Rating208-230
Warranty10 Year Conditional Compressor and Conditional Parts
Shipping Dimensions (L x W x H)39.37" x 39.64" x 48.18"
Additional Information
AHRI Certified|cULus Listed|Energy Guide|ENERGY STAR Certified|ISO 9001:2008
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Improved tubing design reduces vibration and stress, making unit quieter and reducing opportunity for leaks Optimized defrost characteristics - decrease defrosting and provide better home comfort Powder-coated paint finish - for a long-lasting professional finish Optimized reversing valve sizing improves shifting performance for quieter unit operation and increased life of the system Enhanced mufflers help to dissipate vibration energy for quieter unit operation Scroll compressor a sound abating feature added to the compressor significantly reduces noise when system transitions in and out of defrost mode Modern cabinet aesthetics - increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access Integrated heat pump lift receptacle allows standard CPVC stands to be inserted into the base PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster Two-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access - allows easy connection of "low-loss" gauge ports One-row condenser coil makes unit lighter and allows through coil cleaning to maintain out of the box performance 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal Service trays hold fasteners or caps during service calls
Documents
Rheem® RP1660AJ2NA Heat Pump, 5 ton, 60000 Btu/hr BTU, 208-230 V, 38 A, 1/4 hp, 1 ph Phase, Steel, R-410A Refrigerant
BrandRheem®
MFG #RP1660AJ2NA
Keller #971484
My Part ##
Last Ordered#
$12,150.00 / ea
