Samsung

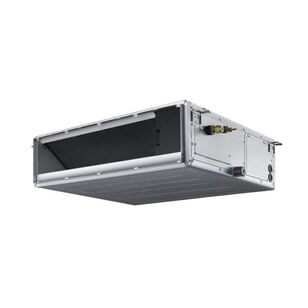

Samsung AC036MNHDCH/AA High Static Pressure Duct S Indoor Unit, 208 to 230 V, 26.5 A, 1 ph, Steel
Samsung
Samsung AC036MNHDCH/AA High Static Pressure Duct S Indoor Unit, 208 to 230 V, 26.5 A, 1 ph, Steel
MFG #AC036MNHDCH/AA
Item #972450
Mfr. Part #AC036MNHDCH/AA
UPC #
Samsung High Static Pressure Duct S Indoor Unit, 208 to 230 V, 26.5 A, 125 W, 244 W, 60 Hz, 1 ph, 36000 Btu/hr Cooling, 40000 Btu/hr Heating, 3040 cfm Condenser, 1165 cfm Evaporator CFM Rating, 11.5 EER, 20 SEER, HSPF: 10.2, Flared Connection Type, Twin BLDC Rotary Compressor, R-410A, Inverter Drive, 38 dBA, Steel, Galvanized, 61 to 90 deg F Cooling, <=80 deg F Heating, 27-9/16 in Overall Length, 51-3/16 in Overall Width, 11-13/16 in Overall Height, Additional Information: Single Zone
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,467.96Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationSingle Zone
Amperage Rating26.5
BTU Rating36000 Btu/hr Cooling, 40000 Btu/hr Heating
CFM Rating3040 cfm Condenser, 1165 cfm Evaporator
Compressor TypeTwin BLDC Rotary
Connection TypeFlared
Drive TypeInverter
EER Rating11.5
FinishGalvanized
Frequency Rating60
HSPF Rating10.2
IndustryHVAC
MaterialSteel
Overall Height11-13/16
Overall Length27-9/16
Overall Width51-3/16
Phase1
Power Rating125 W, 244 W
Refrigerant TypeR-410A
SEER Rating20
Sound Level38
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI Certified|cCSAus Certified
Features & Benefits
- Horizontal discharge airflow The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire Auto restart after power loss The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit The indoor units shall have a removable EEPROM that stores system programming information, unit name and other data The indoor unit shall have a built-in condensate pump as standard with a 29 in lift (from bottom of unit) and float switch that disables indoor unit during overflow detection The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant The indoor unit shall have smart tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve with a wired remote controller (MWRSH11UN, MWR-WG00UN) to increase or decrease airflow The indoor unit shall allow service access from four-sides (top, bottom, left, right) Pipe connections at the outdoor unit shall be made inside the unit chassis, refrigerant pipes can exit through the front, side, rear or bottom sides of the outdoor unit The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night (automatic or manual activation with dry contact signal)
Marketing Information
This system uses advanced technologies to minimize waste and improve efficiency. By adopting the smart inverter technology, the CAC systems not only offer silent operation but also outstanding cooling and heating performance. Samsung single zone duct units offer a wide external static range and includes an internal condensate pump as standard. The evaporator shall be concealed duct-type.
