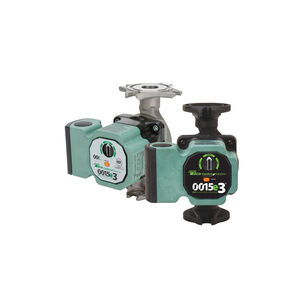

Taco Comfort Solutions® 0015e3-2F4 0015E3-2F4 ECM Circulator Pump With Integral Flow Check, 16 gpm, 44 W, 120 V, 0.54 A
Taco Comfort Solutions® 0015e3-2F4 0015E3-2F4 ECM Circulator Pump With Integral Flow Check, 16 gpm, 44 W, 120 V, 0.54 A
Taco Comfort Solutions® ECM Circulator Pump, Model: 0015e3-2F4, 16 gpm Flow Rate, 18 ft Maximum Head, 44 W, 120 V, 0.54 A, 60 Hz, 125 psi Maximum Pressure, 4830 rpm Motor Speed Rating, 1/20 hp, 1 ph Phase, 36 to 230 deg F, Iron, 6 in L x 5 in W x 6-3/8 in H, Additional Information: Composite Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$936.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationComposite Impeller Material
Amperage Rating0.54
Dimensions6 " L x 5 " W x 6-3/8 " H
Flow Rate16
Frequency Rating60
HP Rating1/20
IndustryHydronics
MaterialIron
Maximum Head18
Maximum Pressure125
Model0015e3-2F4
Motor Speed Rating4830
Phase1
Power Rating44
Temperature Rating36 to 230
Voltage Rating120
Additional Information
cULus Listed|FCC Approved
Features & Benefits
- 3 easy settings - low (5 ft head), medium (10 ft head), high (18 ft head), Install it, forget it BIO barrier protects pump from system contaminants SureStart automatic unblocking and air purging mode High-efficiency ECM motor uses up to 85% less electricity Double insulated, no ground wire required Whisper quiet operation Orange LED indicates 0015e3 running normally The white LED indicates that the innovative SureStart automatic unblocking and air purge is active, SureStart gives you the confidence that you'll never get a locked rotor with the 0015e3, install it, forget it Equipped with a cast iron casing and should be used for closed loop systems only Taco circulator pumps are for indoor use only Acceptable for use with water or maximum of 50% water/glycol solution Not for use on potable water or chilled water systems Composite stator housing, cartridge and impeller Ceramic shaft and thrust bearing Carbon bearings EPDM O-ring and gaskets ECM, permanent magnet, thermally protected type motor Dual electrical knockouts, 6 in stranded wire leads included for easy wiring For use with a Taco ZVC zone valve control or SR switching relay for on/off operation
Documents
Marketing Information
Taco 0015e3is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It's ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00 famous.
Taco Comfort Solutions® 0015e3-2F4 0015E3-2F4 ECM Circulator Pump With Integral Flow Check, 16 gpm, 44 W, 120 V, 0.54 A
BrandTaco Comfort Solutions®
MFG #0015E3-2F4
Keller #972639
