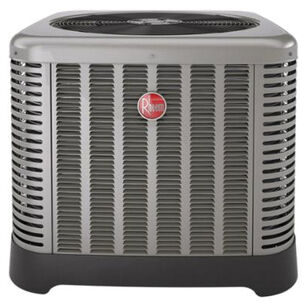

Rheem® RA1630AJ1NA Air Conditioner, 2.5 ton, 208-230 V, 30000 Btu/hr
Rheem® RA1630AJ1NA Air Conditioner, 2.5 ton, 208-230 V, 30000 Btu/hr
Rheem® Air Conditioner, RA16 Series, RA1630 Model, 2.5 ton Nominal Capacity, 30000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 18 A Amperage Rating, 102 W Wattage, 1/5 hp Rating, 710 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 3915 cfm Rating, 13 EER Rating, 16 SEER Rating, 1 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 74.3 dBA Sound Level, Direct Drive Type, Connection Type: Sweat, 30 A Fuse Rating, 16.2 sq-ft Face Area, PSC Motor Type, 22 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 27 in H x 35-3/4 in W x 35-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,670.66 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Amperage Rating18
BTU Rating30000
CFM Rating3915
Compressor TypeScroll
Connection TypeSweat
Dimensions27 " H x 35-3/4 " W x 35-3/4 " D
Drive TypeDirect
EER Rating13
Face Area16.2
FinishGalvanized/Powder-Coated
Fins per Inch22
Frequency Rating60
Fuse Rating30
HP Rating1/5
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRA1630
Motor TypePSC
Nominal Capacity2.5
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed710
SEER Rating16
SeriesRA16 Series
Sound Level74.3
Suction Line Size3/4
Voltage Rating208-230
Warranty10 Year Limited on Parts
Wattage102
Shipping Dimensions (L x W x H)38.25" x 38.25" x 27.38"
Additional Information
AHRI Certified|cULus Listed|Energy Guide|ENERGY STAR Certified
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Improved tubing design reduces vibration and stress, making unit quieter and reducing opportunity for leaks Optimized defrost characteristics decrease defrosting and provide better home comfort Powder-coated paint finish - for a long-lasting professional finish Optimized reversing valve sizing improves shifting performance for quieter unit operation and increased life of the system Enhanced mufflers help to dissipate vibration energy for quieter unit operation Scroll compressor a sound abating feature added to the compressor significantly reduces noise when system transitions in and out of defrost mode Modern cabinet aesthetics, increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access Integrated heat pump lift receptacle allows standard CPVC stands to be inserted into the base PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster The two-fastener removable corner allows optimal access to internal unit components Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access - allows easy connection of "low-loss" gauge ports One-row condenser coil makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal
Marketing Information
Outdoor-mounted, air cooled, split-system air conditioner composite base pan unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air cooled coil, propeller-type condenser fan, suction and legend line service valve and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a coil unit.
