Rheem®

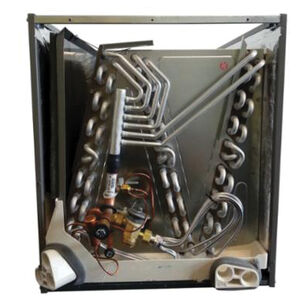

Rheem® Eclipse Series RCF3617SEAMCA Evaporator Coil, Cased N Coil, 3 ton, 36000 Btu/hr, 700 to 1300 cfm, Aluminum
Rheem®
Rheem® Eclipse Series RCF3617SEAMCA Evaporator Coil, Cased N Coil, 3 ton, 36000 Btu/hr, 700 to 1300 cfm, Aluminum
MFG #RCF3617SEAMCA
Item #973554
Mfr. Part #RCF3617SEAMCA
UPC #66202140270
Rheem® Evaporator Coil, RCF Series, 36000 Btu/hr BTU Rating, Multi-Position Configuration, 700 to 1300 cfm Rating, 3 ton Tonnage, R-410A Refrigerant Type, Cased N Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat, 2 Number of Rows, 5.7 sq-ft Face Area, 16 in Fin Size, Aluminum, Gray, 20 in H x 17-1/2 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,553.78 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor gas and oil furnace units
BTU Rating36000
CFM Rating700 to 1300
Coil TypeCased N
ColorGray
ConfigurationMulti-Position
Connection Size3/8 ", 3/4 "
Connection TypeSweat
Dimensions20 " H x 17-1/2 " W x 21-11/16 " D
Face Area5.7
Fin Size16
IndustryHVAC
MaterialAluminum
Number of Rows2
Refrigerant TypeR-410A
SeriesRCF Series
Tonnage3
Additional Information
AHRI Certified, ANAB Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature two sets of 3/4 in NPT condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet and equalizer connections Approved for system application with variety of Rheem® outdoor units Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-coil design maximizes performance and minimizes height required at installation Standard efficiency Major series feature set change, performance change Minor Series, component change, cost reduction, non-performance changes
Rheem® Eclipse Series RCF3617SEAMCA Evaporator Coil, Cased N Coil, 3 ton, 36000 Btu/hr, 700 to 1300 cfm, Aluminum
BrandRheem®
MFG #RCF3617SEAMCA
Keller #973554
My Part ##
Last Ordered#
$1,553.78 / ea
