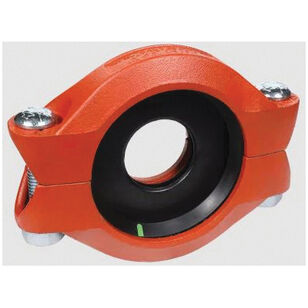

GRUVLOK® Fig 7010 Series 766259268 Reducer Coupling, 3 in Grooved x 2 in Grooved, Iron, Rust Inhibiting Painted
GRUVLOK® Fig 7010 Series 766259268 Reducer Coupling, 3 in Grooved x 2 in Grooved, Iron, Rust Inhibiting Painted
GRUVLOK® Reducer Coupling, Fig 7010 Series, Coupling Fitting, 3 in Connection Size 1, Connection Type 1: Grooved, 2 in Connection Size 2, Connection Type 2: Grooved, Grooved Connection, Iron, Material Construction: Iron, Finish: Rust Inhibiting Painted, Orange, SCH 40, 500 psi, 3-1/2 in OD x 2-3/8 in ID x 7-1/8 in L x 1-7/8 in W, -40 to 230 deg F, Additional Information: 4811 lb Load Capacity
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$371.60 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandGRUVLOK®
Additional Information4811 lb Load Capacity
ApplicationFor water service, diluted acids, alkalis solutions, oil-free air and many other chemical services
ColorOrange
Connection Size 13
Connection Size 22
Connection TypeGrooved
Connection Type 1Grooved
Connection Type 2Grooved
Dimensions3-1/2 " OD x 2-3/8 " ID x 7-1/8 " L x 1-7/8 " W
FinishRust Inhibiting Painted
Fitting TypeCoupling
Includes(2) 1/2 x 2-3/4 in Bolts and Grade-E EPDM Gasket
IndustryPlumbing
MaterialIron
Material ConstructionIron
Pressure Rating500
Schedule RatingSCH 40
SeriesFig 7010 Series
Temperature Rating-40 to 230
Additional Information
ANSI/NSF/CAN 61/372|cUPC Certified|FM Approved|IAPMO Listed|UL Listed|Vds Approved
Documents
Marketing Information
The Fig. 7010 reducing coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 reducing coupling allows for working pressure ratings up to 500 psi (34.5 bar). Not recommended for vacuum applications.
GRUVLOK® Fig 7010 Series 766259268 Reducer Coupling, 3 in Grooved x 2 in Grooved, Iron, Rust Inhibiting Painted
BrandGRUVLOK®
MFG #0390009348
Keller #975254
