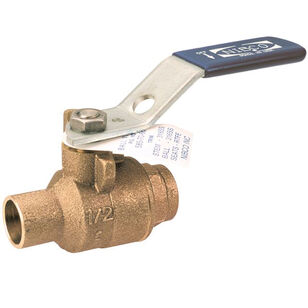

NIBCO S585-70-66-3/4 BALL VALVE NOT FOR POTABLE USE
NIBCO S585-70-66-3/4 BALL VALVE NOT FOR POTABLE USE
NIBCO® 2-Piece Ball Valve, S-585-70-66 Series, 3/4 in Nominal, Female Solder Cup Connection, Full Port, 600 psi, LP Gas, Natural Gas, Steam, Water Media, 3-1/4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, 3/4 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM A276/B584, Bronze Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, Stainless Steel Trim, PTFE Packing, Steel Handle, Bronze Ball, 400 deg F, 3-1/4 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$190.90 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBronze
Body MaterialBronze
Connection TypeFemale Solder Cup
Dimensions3-1/4 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length3-1/4
Material StandardASTM A276/B584
MediaLP Gas, Natural Gas, Steam, Water
Nominal Size3/4
Opening Size3/4
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesS-585-70-66 Series
Stem Material316 Stainless Steel
Temperature Rating400
Top to Inlet Center2-1/4
Trim MaterialStainless Steel
Warranty5 Year Limited
Shipping Dimensions (L x W x H)17.75" x 53.87" x 11.13"
Additional Information
MSS SP 110
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Vented ball Blowout-proof stem Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
