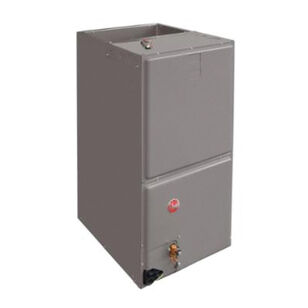

Rheem® RH1V3617STANJA Air Handler, 3 ton, 36000 Btu/hr BTU, 1000 to 1200 cfm, 208/240 VAC, 10.55 kW, 1/2 hp, 60 Hz
Rheem® RH1V3617STANJA Air Handler, 3 ton, 36000 Btu/hr BTU, 1000 to 1200 cfm, 208/240 VAC, 10.55 kW, 1/2 hp, 60 Hz
Rheem® Air Handler, RH1V Series, 3 ton Nominal Capacity, 36000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 3.4 A Circuit, 5 A Minimum Circuit Amperage Rating, 10.55 kW Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1000 to 1200 cfm Rating, 16 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 3/4 in Sweat Vapor, R-410A Refrigerant Type, 15 A Fuse Rating, 1 Number of Stages, Steel, Pre-Painted, 17-1/2 in W x 21-11/16 in D x 42-1/2 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,417.84 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating3.4 A Circuit, 5 A Minimum Circuit
BTU Rating36000
CFM Rating1000 to 1200
Connection Type3/8 " Sweat Liquid, 3/4 " Sweat Vapor
Dimensions17-1/2 " W x 21-11/16 " D x 42-1/2 " H
FinishPre-Painted
Frequency Rating60
Fuse Rating15
HP Rating1/2
IndustryHVAC
MaterialSteel
Nominal Capacity3
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating16
SeriesRH1V
Voltage Rating208/240
Wattage10.55
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance Four leg blower motor mount, blower housing with controls, motor and blower Field convertible for vertical down flow, horizontal left hand or right hand air supply Combustible floor base accessories fit all model sizes when required for down flow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing, coils are tested at the factory with an extensive refrigerant leak check, coils have copper sweat refrigerant connections, coils utilize chatleff metering device connections Molded polymer corrosion-resistant condensate drain pan is provided for all indoor coils Front refrigerant and drain connections ECM blower motor Minor - major Series 15-7/8 in W x 19-3/4 in D return air opening 10 x 8 in blower 3/4 in FNPT auxiliary, primary drain connection 16 in supply duct
Documents
Rheem® RH1V3617STANJA Air Handler, 3 ton, 36000 Btu/hr BTU, 1000 to 1200 cfm, 208/240 VAC, 10.55 kW, 1/2 hp, 60 Hz
BrandRheem®
MFG #RH1V3617STANJA
Keller #977331
