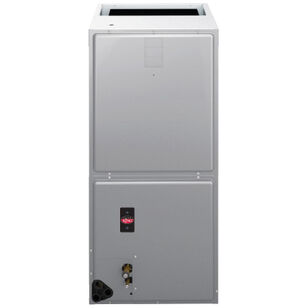

WeatherKing® Eclipse Series WH1T2417STANJA Air Handler With TEV Metering, 2 ton, 24000 Btu/hr BTU, 600 to 800 cfm, 60 Hz
WeatherKing® Eclipse Series WH1T2417STANJA Air Handler With TEV Metering, 2 ton, 24000 Btu/hr BTU, 600 to 800 cfm, 60 Hz
WeatherKing® Air Handler, WH1T Series, 2417ST Model, 2 ton Nominal Capacity, 24000 Btu/hr BTU Rating, 208-240 V Voltage Rating, 1.6 A Circuit, 2 A Minimum Circuit Amperage Rating, 7.03 kW Wattage, 1/3 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 600 to 800 cfm Rating, Upflow, Downflow, Horizontal Left or Right Configuration, 16 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 3/4 in Sweat Vapor, R-410A Refrigerant Type, 15 A Fuse Rating, 16 x 20 in Filter Size, 1 Number of Stages, 4 Number of Speeds, Constant Torque Motor Type, 0.7 kPa, Steel, Pre-Painted, 63 deg F Temperature Rating, 42-1/2 in H x 17-1/2 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,210.12 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeatherKing®
Amperage Rating1.6 A Circuit, 2 A Minimum Circuit
ApplicationFor upflow, downflow, horizontal left and horizontal right applications
BTU Rating24000
CFM Rating600 to 800
ConfigurationUpflow, Downflow, Horizontal Left or Right
Connection Type3/8 " Sweat Liquid, 3/4 " Sweat Vapor
Dimensions42-1/2 " H x 17-1/2 " W x 21-11/16 " D
Filter Size16 x 20
FinishPre-Painted
Frequency Rating60
Fuse Rating15
HP Rating1/3
IndustryHVAC
MaterialSteel
Model2417ST
Motor TypeConstant Torque
Nominal Capacity2
Number of Speeds4
Number of Stages1
Phase1
Pressure Rating0.7
Refrigerant TypeR-410A
SEER Rating16
SeriesWH1T Series
Temperature Rating63
Voltage Rating208-240
Wattage7.03
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance Four leg blower motor mount, blower housing with controls, motor and blower, slide-out design for service and maintenance convenience Field convertible for vertical downflow, horizontal left hand or right hand air supply Three combustible floor base accessories fit all model sizes when required for downflow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Expansion valve on indoor coil provides for operation with air conditioning or heat pump using the same coil Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Coils utilize chatleff metering device connections Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Supply duct flanges provided as standard on air handler cabinet Provisions for field electrical connections available from either side or top of the air handler cabinet Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, installer may pull desired hole size upto 2 in for 1-1/2 in conduit Front refrigerant and drain connections Constant torque(ECM) motor 1st major Series 1st minor Series
