Rheem®

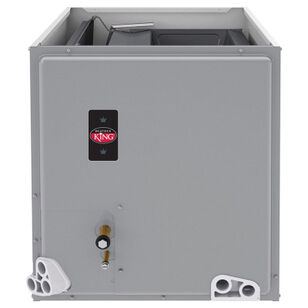

WeatherKing® TCF2417STAMCA Cased Coil, Cased Coil, 2 ton, 24000 Btu/hr, 600 to 900 cfm, Aluminum
Rheem®
WeatherKing® TCF2417STAMCA Cased Coil, Cased Coil, 2 ton, 24000 Btu/hr, 600 to 900 cfm, Aluminum
MFG #TCF2417STAMCA
Item #978565
Mfr. Part #TCF2417STAMCA
UPC #732382100350
WeatherKing® Cased Coil, TCF Series, 24000 Btu/hr BTU Rating, 600 to 900 cfm Rating, 2 ton Tonnage, R-410A Refrigerant Type, Cased Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat, 2 Number of Rows, 4.56 sq-ft Face Area, 16 in Fin Size, Aluminum, 20 in H x 17-1/2 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,296.51 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor gas and oil furnace units
BTU Rating24000
CFM Rating600 to 900
Coil TypeCased
Connection Size3/8 ", 3/4 "
Connection TypeSweat
Dimensions20 " H x 17-1/2 " W x 21-11/16 " D
Face Area4.56
Fin Size16
IndustryHVAC
MaterialAluminum
Number of Rows2
Refrigerant TypeR-410A
SeriesTCF Series
Tonnage2
Additional Information
AHRI Certified, ANAB Certified, ISO 9001:2008 Certified, C/US UL Listed
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature two sets of 3/4 in NPT condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only) Approved for system application with variety of WeatherKing® outdoor units Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-coil design maximizes performance and minimizes height required at installation Major series feature set change, performance change Minor Series, component change, cost reduction, non-performance changes
