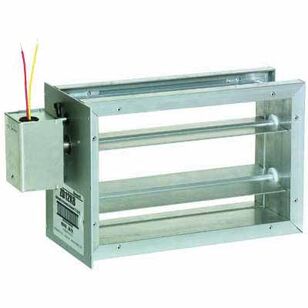

Honeywell ZD ZD20X14TZ Zone Damper, 6 in W, Rectangular, 71 in-oz
Honeywell ZD ZD20X14TZ Zone Damper, 6 in W, Rectangular, 71 in-oz
Honeywell Zone Damper, Model: ZD, Parallel Blade, Push Terminal Electrical Connection, 10 s De-Energized, 30 s Energized Timing, 71 in-oz Torque, Extruded Aluminum, Side Mounting, Power Closed, Spring Open Motor, Motor Specifications: 24 VAC at 60 Hz, 8 VA, Rectangular Shape, 1 in-WC, 40 to 140 deg F, 6 in Width
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$646.97 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Blade TypeParallel
Electrical ConnectionPush Terminal
MaterialExtruded Aluminum
ModelZD
Motor Specifications24 VAC at 60 Hz, 8 VA
Motor TypePower Closed, Spring Open
Mounting TypeSide
Pressure Rating1
ShapeRectangular
Temperature Rating40 to 140
Timing Range10 s De-Energized, 30 s Energized
Torque Rating71
Width6
Features & Benefits
- Mechanical visual position indicator for damper status Solid construction using extruded aluminum frame and blades Parallel blade design for low leakage performance Simple, easy-to-wire, two wire installation Reliable, strong, 24 V spring return motor Fail safe, normally open operation Damper can be installed in any orientation Quiet operation with fewer blades Easy slip in design Taping flange and non-interfering setscrew Adjustable damper position range stops
Marketing Information
The ZD is a power close and spring open damper. It has a 24 V motor used to control circulating air-in HVAC systems and used when a normally open damper is required. The ZD is typically used with the TrueZone® and other electronic zoning systems.
Honeywell ZD ZD20X14TZ Zone Damper, 6 in W, Rectangular, 71 in-oz
BrandHoneywell
MFG #ZD20X14TZ/U
Keller #979668
