BTL Certified

• Control gateway that allows control and monitoring of Samsung HVAC systems via BACnet /IP Individual/group control of up to 256 indoor units Operation mode, temperature setting, airflow direction, fan speed, temperature restriction settings, unoccupied mode setting and discharge air temperature setting (for applicable duct unit models) Restrict use of wireless/wired remote controllers, mode, temperature and set point Outdoor and indoor unit cycle monitoring Convenient digital display allows for easy initial setup SD memory card slot for data storage and software updating (daily automatic backup, SD card purchased separately) LAN connection for upper level control options Available sophisticated control logic allows programming outputs based on various system inputs Dynamic security management Operation and error history management Maximum current control of outdoor units to limit current (50 to 100% of design current) adjustable at outdoor unit or MIM-B17B*N (does not apply to all system models) Supports multiple user access (different usernames and access levels) Various user management level settings (HVAC system access, gateway permission access) Remote control with a public IP address via internet connection No management software required PC independent management through web browser (optimized for Internet Explorer) Multiple user accounts can be setup with the ability to specify what units each individual can monitor and control and what level of control permission is allowed Up to 256 schedule settings Weekly and daily schedule setting Wireless/wired remote controller restriction setting, digital outputs can be incorporated into scheduling

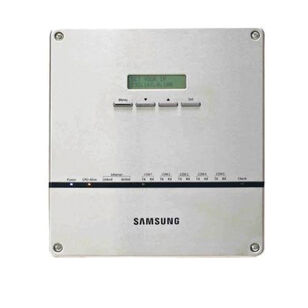

MIM-B17BN and MIM-B17BUN are the same. The only difference is MIM-B17BUN has an updated power cord for North America. The improved Samsung DMS (data management server) 2.5 with BACnet is now smarter. It can manage a variety of different air conditioning units and the newly upgraded functions can automatically manage the air conditioning system for users. Features include - built-in web server for PC independent management and remote access control, weekly/daily schedule control, data storage in non-volatile memory and SD memory, current time management even during power failure (for 24 hr), emergency stop function with simple contract interface, unoccupied room control configuration, 10 digital inputs, eight-digital outputs, maximum 256 indoor unit connection and many other features.
