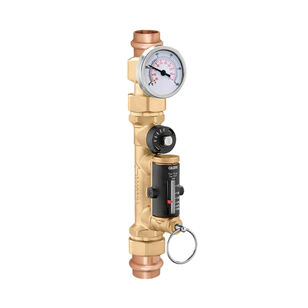

Caleffi Quicksetter+™ 132 Series 132557AFC Balancing Valve With Temperature Gauge, 3/4 in, Press
Caleffi Quicksetter+™ 132 Series 132557AFC Balancing Valve With Temperature Gauge, 3/4 in, Press
Caleffi Quicksetter+™ Balancing Valve With Temperature Gauge, 132 Series, 3/4 in Nominal, Press Connection, 2 to 7 gpm Flow Rate, 150 psi, 6.3 Cv Flow Coefficient (Cv), Brass Stem, PTFE Seat, PTFE Seal, Brass, Glycol Solutions, Water Media, 12-1/8 in Inlet to Outlet Length, Lead-Free, 30 to 210 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$444.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Connection TypePress
Flow Coefficient (Cv)6.3
Flow Rate2 to 7
IndustryHydronics
Inlet to Outlet Length12-1/8
Lead-FreeYes
MaterialBrass
MediaGlycol Solutions, Water
Nominal Size3/4
Pressure Rating150
Seal MaterialPTFE
Seat MaterialPTFE
Series132 Series
Stem MaterialBrass
Temperature Rating30 to 210
Additional Information
BAA Compliant|c-ICC-ES-PMG Certified|California Health and Safety Code 116875|NSF/ANSI/CAN 372|Vermont Act 193
Features & Benefits
- DZR low lead brass valve body and flow meter
- Direct reading of flow rate
- No sight gauge clouding or scaling
- Rotatable stainless steel flow rate adjuster
- Inlet flow check valve
- Graduated scale flow meter with magnetic movement flow rate indicator
Marketing Information
The Quicksetter+™ manual balancing valve contains a built-in flow meter and sight gauge, negating the need for differential pressure gauges and reference charts. Circuit balancing is fast, easy and accurate. Constructed of DZR low-lead brass, Quicksetter+™ is ideally suited for use in plumbing applications such as hot water recirculation systems. The built-in check valve protects against circuit thermosiphoning. The outlet temperature gauge (optional) verifies the fluid temperature in the circuit. The flow meter sight gauge is dry (not exposed to the fluid) thus eliminating the possibility of gauge clouding/scaling over time. Peroxide-cured EPDM seals provide chlorine and chloramine resistance and long operating life.
Caleffi Quicksetter+™ 132 Series 132557AFC Balancing Valve With Temperature Gauge, 3/4 in, Press
BrandCaleffi
MFG #132557AFC
Keller #980798
