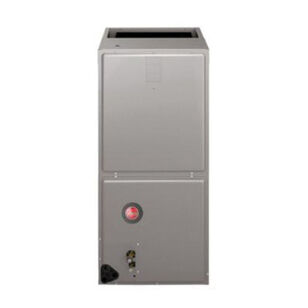

Rheem® RH1T3621HTANAA Air Handler With TEV Metering, 3 ton, 36000 Btu/hr BTU, 1000 to 1200 cfm, 115 VAC, 10.55 kW, 60 Hz
Rheem® RH1T3621HTANAA Air Handler With TEV Metering, 3 ton, 36000 Btu/hr BTU, 1000 to 1200 cfm, 115 VAC, 10.55 kW, 60 Hz
Rheem® Air Handler, RH1T Series, 3621HT Model, 3 ton Nominal Capacity, 36000 Btu/hr BTU Rating, 115 VAC Voltage Rating, 6.8 A Circuit, 9 A Minimum Circuit Amperage Rating, 10.55 kW Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1000 to 1200 cfm Rating, 16 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 7/8 in Sweat Vapor, R-410A Refrigerant Type, 15 A Fuse Rating, 1 Number of Stages, Steel, Pre-Painted, 21 in W x 21-11/16 in D x 57 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,989.86 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating6.8 A Circuit, 9 A Minimum Circuit
ApplicationFor upflow, downflow, horizontal left and horizontal right applications
BTU Rating36000
CFM Rating1000 to 1200
Connection Type3/8 " Sweat Liquid, 7/8 " Sweat Vapor
Dimensions21 " W x 21-11/16 " D x 57 " H
FinishPre-Painted
Frequency Rating60
Fuse Rating15
HP Rating1/2
IndustryHVAC
MaterialSteel
Model3621HT
Nominal Capacity3
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating16
SeriesRH1T
Voltage Rating115
Wattage10.55
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance Four leg blower motor mount, blower housing with controls, motor and blower, slide-out design for service and maintenance convenience Field convertible for vertical downflow, horizontal left hand or right hand air supply Three combustible floor base accessories fit all model sizes when required for downflow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Expansion valve on indoor coil provides for operation with air conditioning or heat pump using the same coil Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing, coils are tested at the factory with an extensive refrigerant leak check, coils have copper sweat refrigerant connections, coils utilize chatleff metering device connections Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Supply duct flanges provided as standard on air handler cabinet Provisions for field electrical connections available from either side or top of the air handler cabinet Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, installer may pull desired hole size upto 2 in for 1-1/2 in conduit Front refrigerant and drain connections Constant torque(ECM), 2-speed blower motor 1st design major Series 19-3/8 in W x 19-3/4 in D return air opening 10 x 10 in blower 3/4 in FNPT auxiliary, primary drain connection 19-1/2 in supply duct
Rheem® RH1T3621HTANAA Air Handler With TEV Metering, 3 ton, 36000 Btu/hr BTU, 1000 to 1200 cfm, 115 VAC, 10.55 kW, 60 Hz
BrandRheem®
MFG #RH1T3621HTANAA
Keller #981598
My Part ##
Last Ordered#
$3,989.86 / ea
