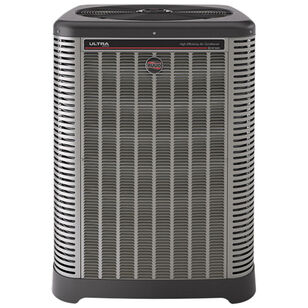

Rheem® UA2036AJVCB Split-System Air Conditioner, 3 ton, 36000 Btu/hr Cooling, 208-230 V
Rheem® UA2036AJVCB Split-System Air Conditioner, 3 ton, 36000 Btu/hr Cooling, 208-230 V
Rheem® Split-System Air Conditioner, UA20 Series, UA2036A Model, 3 ton Nominal Capacity, 36000 Btu/hr Cooling Capacity, 208-230 V Voltage Rating, 29 A Amperage Rating, 114 W Wattage, 1/3 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 4315 cfm Rating, 13 EER Rating, 20 SEER Rating, 2 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 72 dBA Sound Level, Inverter Drive Type, Connection Type: Sweat, 45 A Fuse Rating, 22.3 sq-ft Face Area, 20 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 39 in H x 33-3/4 in W x 33-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,358.57 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating29
CFM Rating4315
Compressor TypeScroll
Connection TypeSweat
Cooling Capacity36000
Dimensions39 " H x 33-3/4 " W x 33-3/4 " D
Drive TypeInverter
EER Rating13
Face Area22.3
FinishGalvanized/Powder-Coated
Fins per Inch20
Frequency Rating60
Fuse Rating45
HP Rating1/3
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelUA2036A
Nominal Capacity3
Number of Stages2
Phase1
Refrigerant TypeR-410A
Rotational Speed825
SEER Rating20
SeriesUA20 Series
Sound Level72
Suction Line Size3/4
Voltage Rating208-230
Warranty10 Year Limited on Replacement, 10 Year Limited on Parts
Wattage114
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed EcoNet® enabled product, the EcoNet® smart home system provides advanced air and water control for maximum energy savings and ideal comfort Powder-coated paint finish - for a long-lasting professional finish Modern cabinet aesthetics, increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing Two-stage compressor providing more precise temperature control, lower humidity and greater efficiency in comparison to single-stage compressors PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access - allows easy connection of "low-loss" gauge ports One-row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal Service trays - hold fasteners or caps during service calls QR code provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire First design major series High and low pressure standard on all model
Documents
Rheem® UA2036AJVCB Split-System Air Conditioner, 3 ton, 36000 Btu/hr Cooling, 208-230 V
BrandRheem®
MFG #UA2036AJVCB
Keller #982139
My Part ##
Last Ordered#
$12,358.57 / ea
