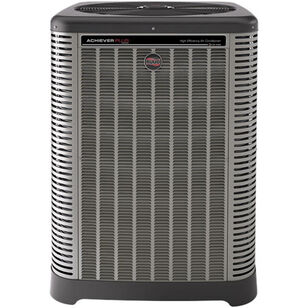

Rheem® Ovation Series UA1760AJ2CB Split-System Air Conditioner, 5 ton, 60000 Btu/hr Cooling, 208-230 V
Rheem® Ovation Series UA1760AJ2CB Split-System Air Conditioner, 5 ton, 60000 Btu/hr Cooling, 208-230 V
Rheem® Split-System Air Conditioner, UA17 Series, UA1760A Model, 5 ton Nominal Capacity, 60000 Btu/hr Cooling Capacity, 208-230 V Voltage Rating, 42 A Amperage Rating, 113 W Wattage, 1/2 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 5133 cfm Rating, 13 EER Rating, 17 SEER Rating, 2 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 76.7 dBA Sound Level, Direct Drive Type, Connection Type: Sweat, 70 A Fuse Rating, 32.3 sq-ft Face Area, 22 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 51 in H x 35-3/4 in W x 35-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$10,944.41 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating42
CFM Rating5133
Compressor TypeScroll
Connection TypeSweat
Cooling Capacity60000
Dimensions51 " H x 35-3/4 " W x 35-3/4 " D
Drive TypeDirect
EER Rating13
Face Area32.3
FinishGalvanized/Powder-Coated
Fins per Inch22
Frequency Rating60
Fuse Rating70
HP Rating1/2
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelUA1760A
Nominal Capacity5
Number of Stages2
Phase1
Refrigerant TypeR-410A
Rotational Speed825
SEER Rating17
SeriesUA17 Series
Sound Level76.7
Suction Line Size7/8
Voltage Rating208-230
Warranty10 Year Limited on Replacement, 10 Year Limited on Parts
Wattage113
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed EcoNet® enabled product, the EcoNet® smart home system provides advanced air and water control for maximum energy savings and ideal comfort Powder-coated paint finish - for a long-lasting professional finish Modern cabinet aesthetics, increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing Two-stage compressor providing more precise temperature control, lower humidity and greater efficiency in comparison to single-stage compressors PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit External gauge port access - allows easy connection of "low-loss" gauge ports One-row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal Service trays - hold fasteners or caps during service calls QR code provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire First design major series High and low pressure standard on all model
