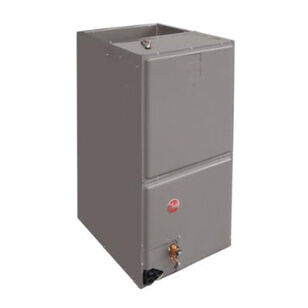

Rheem® RH1P6024STANJA Air Handler With TEV Metering, 5 ton, 60000 Btu/hr BTU, 1800 cfm, 208 to 240 VAC, 17.58 kW, 3/4 hp
Rheem® RH1P6024STANJA Air Handler With TEV Metering, 5 ton, 60000 Btu/hr BTU, 1800 cfm, 208 to 240 VAC, 17.58 kW, 3/4 hp
Rheem® Air Handler, RH1P Series, 5 ton Nominal Capacity, 60000 Btu/hr BTU Rating, 208 to 240 VAC Voltage Rating, 17.58 kW Wattage, 3/4 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1800 cfm Rating, 15 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 7/8 in Sweat Vapor, R-410A Refrigerant Type, 1 Number of Stages, Steel, Pre-Painted, 24-1/2 in W x 21-11/16 in D x 55-1/2 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,889.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor upflow, downflow, horizontal left and horizontal right applications
BTU Rating60000
CFM Rating1800
Connection Type3/8 " Sweat Liquid, 7/8 " Sweat Vapor
Dimensions24-1/2 " W x 21-11/16 " D x 55-1/2 " H
FinishPre-Painted
Frequency Rating60
HP Rating3/4
IndustryHVAC
MaterialSteel
Nominal Capacity5
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating15
SeriesRH1P
Voltage Rating208 to 240
Wattage17.58
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance Four leg blower motor mount, blower housing with controls, motor and blower Field convertible for vertical down flow, horizontal left hand or right hand air supply Three combustible floor base accessories fit all model sizes when required for down flow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing, coils are tested at the factory with an extensive refrigerant leak check, coils have copper sweat refrigerant connections, coils utilize chatleff metering device connections Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Front refrigerant and drain connections PSC, two speed blower motor Minor - major Series 22-7/8 in W x 19-3/4 in D return air opening 11 x 11 in blower 3/4 in FNPT auxiliary, primary drain connection 23 in supply duct
Rheem® RH1P6024STANJA Air Handler With TEV Metering, 5 ton, 60000 Btu/hr BTU, 1800 cfm, 208 to 240 VAC, 17.58 kW, 3/4 hp
BrandRheem®
MFG #RH1P6024STANJA
