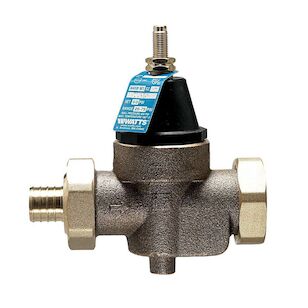

WATTS® LFN45B Series 0009485 Pressure Reducing Valve, 3/4 in Nominal, Union PEX, 400 psi, 33 to 180 deg F
WATTS® LFN45B Series 0009485 Pressure Reducing Valve, 3/4 in Nominal, Union PEX, 400 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LFN45B Series, 3/4 in Nominal, Union PEX Connection, 400 psi, Water Media, 3-7/16 in Inlet to Outlet Length, 4-9/16 in Top to Inlet Center, Copper Silicon Alloy Body, Thermoplastic Seat, Elastomer Disc, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$336.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon Alloy
Connection TypeUnion PEX
Disc MaterialElastomer
IndustryPlumbing
Inlet to Outlet Length3-7/16
Lead-FreeYes
MediaWater
Nominal Size3/4
Pressure Rating400
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Top to Inlet Center4-9/16
Shipping Dimensions (L x W x H)5.625" x 7.38" x 2.63"
Additional Information
ASSE 1003|ANSI A112.26.2|Buy American Act Compliant|CSA B356|cUPC Certified|IAPMO Certified|MIL-V-18146B Type I|NSF/ANSI 61 Annex G
Features & Benefits
- Lead free body construction PEX union inlet and outlet Integral stainless steel strainer removable for cleaning Sealed spring cage for accessible outdoor or pit installations Double union inlet and outlet NPT connections Thermoplastic seat and cage Bypass feature controls thermal expansion pressure
Documents
Marketing Information
This 3/4 inch lead free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead fee cast copper silicon alloy body, integral stainless steel strainer and thermal expansion bypass. It features double union PEX end connections. The maximum working pressure is 400 psi (27.6 bar), and may be adjusted from 25 to 75 psi (172 to 517 kPa). The standard setting is 50 psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line.
WATTS® LFN45B Series 0009485 Pressure Reducing Valve, 3/4 in Nominal, Union PEX, 400 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009485
Keller #982744
My Part ##
Last Ordered#
$336.00 / ea
