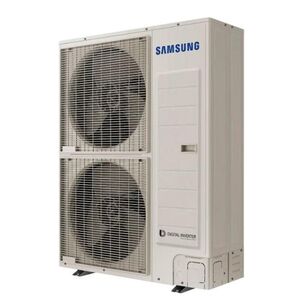

Samsung DVM S Eco Series AM060MXMDCH/AA Heat Pump Condensing Unit, 208 - 230 V, 60000 Btu/hr Cooling, 1 ph, Steel
Samsung DVM S Eco Series AM060MXMDCH/AA Heat Pump Condensing Unit, 208 - 230 V, 60000 Btu/hr Cooling, 1 ph, Steel
Samsung Heat Pump Condensing Unit, DVM S Eco Series, 208 - 230 V, 60 Hz, 1 ph, 66000 Btu/hr Heating, 60000 Btu/hr Cooling, 4767 cfm Condenser Heating CFM Rating, 9.9, 11.2 EER Rating, 16.5, 19 SEER, 9.5, 9.8 HSPF, Twin BLDC Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 50 A Fuse Rating, Inverter Drive, Tonnage: 5 ton, 60 dBA Heating Sound Level, 58 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, -13 to 75 deg F Heating Operating Temperature, 0 to 118 deg F Cooling Operating Temperature, 13 in Overall Length, 37 in Overall Width, 55-15/16 in Overall Height, For Use With: Samsung DVM S Indoor Units, Additional Information: DVM Classification, 2017 Version, Standard + General Temp + Non Module Feature
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$10,781.64 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationDVM Classification, 2017 Version, Standard + General Temp + Non Module Feature
Compressor TypeTwin BLDC Rotary
Cooling BTU Rating60000
Cooling Operating Temperature0 to 118
Cooling Sound Level58
Drive TypeInverter
EER Rating9.9, 11.2
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating50
Heating BTU Rating66000
Heating CFM Rating4767 cfm Condenser
Heating Operating Temperature-13 to 75
Heating Sound Level60
HSPF Rating9.5, 9.8
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Overall Height55-15/16
Overall Length13
Overall Width37
Phase1
Refrigerant TypeR-410A
SEER Rating16.5, 19
SeriesDVM S Eco Series
Suction Line Size3/4
Suitable For Use WithSamsung DVM S Indoor Units
Tonnage5
Voltage Rating208 - 230
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR® Certified|UL 1995
Features & Benefits
- The unit shall be galvanized steel with a baked on powder coated finish Refrigerant pipe connections inside unit chassis with penetrations available on front, back, right, and bottom sides for versatile installation The heat exchanger shall be mechanically bonded fin to copper tube Salt spray test method: ASTM-B117-18 - the heat exchanger showed no unusual rust or corrosion development to 2,280 hours The unit shall be operated via NASA Protocol with controls provided by Samsung Control wiring shall be 16 AWG X 2 shielded wire The compressors shall be Samsung hermetically sealed, inverter driven, twin BLDC Rotary type Refrigerant flow shall be controlled by EEV (electronic expansion valve) throughout the system A flat plate subcooler device will improve capacity at extreme system refrigerant pipe lengths and reduce refrigerant noise
