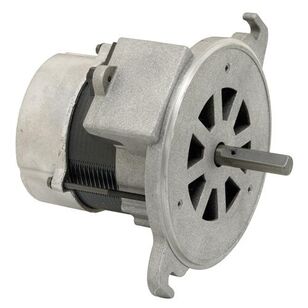

US Motors® 2097 Oil Burner Motor, 115 V, 2.4 A, 1/8 hp, 3450 rpm Speed, 1 ph -Phase, 60 Hz, 48N Frame
US Motors® 2097 Oil Burner Motor, 115 V, 2.4 A, 1/8 hp, 3450 rpm Speed, 1 ph -Phase, 60 Hz, 48N Frame
US Motors® Oil Burner Motor, 115 V, 2.4 A, 1/8 hp, 3450 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Non-Ventilated Motor Enclosure, 48N Frame, 1/2 in Dia x 2 in L Shaft, REV Rotation, 1 Speed, Ball Bearing, Class B Insulation Class, 1 Service Factor, N Flange Mounting, 40 deg C Ambient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1.59 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandPASCO
Amperage Rating2.4
Bearing TypeBall
Frame Size48N
Frequency Rating60
HP Rating1/8
IndustryPlumbing
Insulation ClassClass B
Motor Enclosure TypeTotally Enclosed Non-Ventilated
Mounting TypeN Flange
Number of Speeds1
Phase1
Rotation TypeREV
Service Factor1
Shaft Size1/2 " Dia x 2 " L
Speed Rating3450
Temperature Rating40 deg C Ambient
Voltage Rating115
Additional Information
CSA Certified|UR Listed
Features & Benefits
- 20 in leads, located at 3 O'clock viewed from end opposite shaft Manual reset thermal overload protection 56N frame has two holes and screws for mounting outlet box 56N flange is enclosed, 48M and 48N flange are ventilated Bearings have all angle thrust system
US Motors® 2097 Oil Burner Motor, 115 V, 2.4 A, 1/8 hp, 3450 rpm Speed, 1 ph -Phase, 60 Hz, 48N Frame
BrandPASCO
MFG #2097
Keller #98414
My Part ##
Last Ordered#
$1.59 / ea
