Bell & Gossett

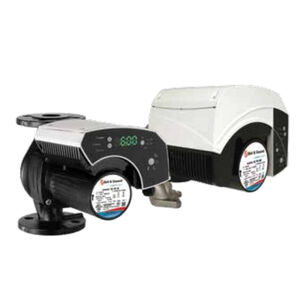

Bell & Gossett ecocirc® XL Ecocirc XL N 36-45 104451LF High Efficiency Large Wet Rotor Circulator With ECM, 20 to 200 W
Bell & Gossett
Bell & Gossett ecocirc® XL Ecocirc XL N 36-45 104451LF High Efficiency Large Wet Rotor Circulator With ECM, 20 to 200 W
MFG #104451LF
Item #984444
Mfr. Part #104451LF
UPC #683328247113
Bell & Gossett ecocirc® XL High Efficiency Large Wet Rotor Circulator, Model: Ecocirc XL N 36-45, 20 to 200 W, 115 VAC, 0.1 to 3 A, 50/60 Hz, 175 psi Maximum Pressure, 1/6 HP, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, NPT Connection, 1 ph Phase, 14 to 230 deg F, IP44, NEMA 2 Enclosure, Sleeve Bearing, Stainless Steel, 9.94 in L x 7.2 in W x 6.38 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,042.45 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Amperage Rating0.1 to 3
Bearing TypeSleeve
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeNPT
Dimensions9.94 " L x 7.2 " W x 6.38 " H
Enclosure TypeIP44, NEMA 2
Frequency Rating50/60
HP Rating1/6
IndustryPlumbing
MaterialStainless Steel
Maximum Pressure175
ModelEcocirc XL N 36-45
Phase1
Power Rating20 to 200
Temperature Rating14 to 230
Voltage Rating115
Additional Information
CSA Certified|cULus Listed
Features & Benefits
- Economical operation - efficient ECM motor, optimized hydraulics, low operational costs Chilled water applications - electronics separated from the pump to prevent condensation, worry-free operation even at 14 deg F User friendly interface - four logically placed buttons, intuitive interface, easy to set and operate Pump protection - built-in dry-run protection, stops pump if no water, prevent damage/repairs High visibility - clear display, large figures and symbols, easy to view pump status More control options - multiple inputs, start-stop temp control, pressure regulation, advanced Modbus or BACnet controls
Marketing Information
The ecocirc XL is a highly efficient circulator that enhances commercial hydronics systems with superior quality and dependability. State-of-the-art hydraulics, advanced motor design, intelligent controls, and smart communication capabilities highlight expert engineering across a broad range of HVAC and plumbing applications.
Bell & Gossett ecocirc® XL Ecocirc XL N 36-45 104451LF High Efficiency Large Wet Rotor Circulator With ECM, 20 to 200 W
BrandBell & Gossett
MFG #104451LF
Keller #984444
My Part ##
Last Ordered#
$4,042.45 / ea
