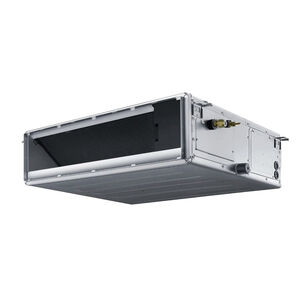

Samsung AC030MNHDCH/AA Single-Zone Duct Split System Indoor Unit, 208-230 V, 23 A, 30000 Btu/hr BTU, 1 ph, Steel
Samsung AC030MNHDCH/AA Single-Zone Duct Split System Indoor Unit, 208-230 V, 23 A, 30000 Btu/hr BTU, 1 ph, Steel
Samsung Single-Zone Duct Split System Indoor Unit, 208-230 V, 23 A, 60 Hz, 1 ph, 30000 Btu/hr, 670 to 1220 cfm, 10 EER Rating, 18.4 SEER, 10.2 HSPF, Connection Type: Flared, Inverter Driven, Twin BLDC Rotary Compressor, R-410A Refrigerant, 30 A Fuse Rating, 37 dBA Sound Level, Steel, Galvanized, 61 to 90 deg F Cooling, <=80 deg F Heating, 47-1/4 in Overall Length, 27-9/16 in Overall Width, 9-13/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,434.48Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating23
BTU Rating30000
CFM Rating670 to 1220
Compatible Outdoor Unit ModelAC030JXADCH/AA (CXH30ADJ)
Compressor TypeInverter Driven, Twin BLDC Rotary
Connection TypeFlared
Cooling at 95F: Maximum Capacity (BTUH)35000
Cooling at 95F: Minimum Capacity (BTUH)9300
Cooling at 95F: Rated Capacity (BTUH)30000
EER Rating10
Efficiency: COP at 47F3.16
Efficiency: EER10
Efficiency: HSPF10.2
Efficiency: SEER18.4
FinishGalvanized
Frequency Rating60
Fuse Rating30
Guaranteed Operating Voltage Range (VAC)176/254 VAC
Heating at 47F: Rated Capacity (BTUH)32000
HSPF Rating10.2
Indoor Unit: Fan Motor FLA1.5
Indoor Unit: Fan Motor Output (W)153
Indoor Unit: Fan TypeBLDC (1) With Sirocco Fan (3)
Indoor Unit: Fuse/Breaker Size (Amp)30
Indoor Unit: Heat Exchanger Tube Dia. Inch (mm)3/8
Indoor Unit: MCA23
Indoor Unit: Refrigerant ControlEEV
Indoor Unit: Sound Pressure Level dB (A)29 / 33 / 37
IndustryHVAC
MaterialSteel
Model NumberAC0
Outdoor Unit: Compressor RLA15.1
Outdoor Unit: Compressor TypeInverter Driven, Twin BLDC, Rotary
Outdoor Unit: Heat Exchanger Tube Dia. Inch (mm)5/8
Outdoor Unit: Heat Exchanger TypeAluminum Fin - Copper Tube
Outdoor Unit: Sound Pressure Level dB[A]50/52 (Cooling/Heating)
Overall Height9-13/16
Overall Length47-1/4
Overall Width27-9/16
Phase1
Piping: Max. Piping Height Difference Feet (m)98
Piping: Max. Piping Length Feet (m)164 '
Power Supply208/230 V/1 Phase/60 Hz
Refrigerant Data: TypeR-410A
Refrigerant TypeR-410A
SEER Rating18.4
Sound Level37
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208-230
Additional Information
AHRI 10146784|cETLus Intertek Listed|UL 1995
Features & Benefits
- Horizontal discharge airflow The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire Auto-restart after power loss The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit. The indoor unit shall have a removable EEPROM that stores system programming information, unit name, and other data The indoor unit shall have a built-in condensate pump as standard with a 29" lift (from bottom of unit) and float switch that disables indoor unit during overflow detection. The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant. The indoor unit shall have smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve with a wired remote controller (MWRSH11UN, MWR-WG00UN) to increase or decrease airflow. The indoor unit shall allow service access from four sides (top, bottom, left, right) The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night.
Documents
Marketing Information
This system uses advanced technologies to minimize waste and improve efficiency. By adopting the smart inverter technology, the CAC systems not only offer silent operation but also outstanding cooling and heating performance. Samsung single zone duct units offer a wide external static range and includes an internal condensate pump as standard. The evaporator shall be concealed duct type.
