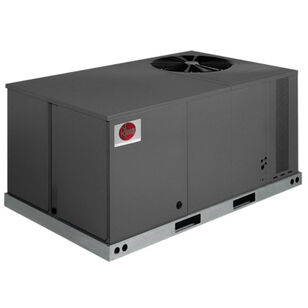

Rheem® RJPL-A060CK000 Heat Pump Package Unit, 5 ton Nominal, 59500 Btu/hr Heating, 208/230 VAC, 25 A, 2000 cfm
Rheem® RJPL-A060CK000 Heat Pump Package Unit, 5 ton Nominal, 59500 Btu/hr Heating, 208/230 VAC, 25 A, 2000 cfm
Rheem® Heat Pump Package Unit, RJPL-A Series, A060CK Model, 5 ton Nominal Capacity, 61000 Btu/hr Cooling BTU Rating, 59500 Btu/hr Heating BTU Rating, 208/230 VAC Voltage Rating, 25 A Amperage Rating, 1/3 hp Condenser, 1 hp Blower Motor HP Rating, 60 Hz Frequency Rating, 3 ph Phase, 1075 to 1100 rpm Rotational Speed, Scroll Compressor Type, 2000 cfm Rating, 14 SEER Rating, 8 HSPF Rating, 11.7 EER Rating, Connection Type: 3/4 in NPT Condensate Drain, R-410A Refrigerant Type, 1 Number of Stages, 40 A Fuse Rating, 83 dBA Sound Level, Outdoor Coil - 16.56 sq-ft Face Area, 22 Fins/in, Indoor Coil - 5.16 sq-ft Face Area, 13 Fins/in Coil Rating, Galvanized Steel, Powder-Painted, 76-5/16 in W x 46-1/2 in D x 35 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,040.57 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating25
ApplicationFor low temperature applications
CFM Rating2000
Coil RatingOutdoor Coil - 16.56 sq-' Face Area, 22 Fins/", Indoor Coil - 5.16 sq-' Face Area, 13 Fins/"
Compressor TypeScroll
Connection Type3/4 " NPT Condensate Drain
Cooling BTU Rating61000 Btu/hr Cooling
Dimensions76-5/16 " W x 46-1/2 " D x 35 " H
EER Rating11.7
FinishPowder-Painted
Frequency Rating60
Fuse Rating40
Heating BTU Rating59500 Btu/hr Heating
HP Rating1/3 hp Condenser, 1 hp Blower Motor
HSPF Rating8
IndustryHVAC
MaterialGalvanized Steel
ModelA060CK
Nominal Capacity5
Number of Stages1
Phase3
Refrigerant TypeR-410A
Rotational Speed1075 to 1100
SEER Rating14
SeriesRJPL-A
Sound Level83
Voltage Rating208/230
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008 Certified, Energy Guide, Energy Star Certified
Features & Benefits
- Design Series Future technical variations Direct drive package Complete factory charged, wired and run tested Scroll compressors with internal line break overload and high-pressure protection Convertible air flow TXV refrigerant metering system on each circuit High pressure protection standard on all models Solid core liquid line filter drier on each circuit One-slab, single pass designed evaporator coil facilitate easy cleaning for maintained high efficiencies Cooling operation upto 125 deg F ambient Easy access to filter, blower, electric heat and compressor/control compartments permit prompt service Powder paint finish meets ASTMB117 steel-coated on each side for maximum protection, G90 galvanized One-piece top cover and base pan with drawn supply and return opening for superior water management Externally mounted refrigerant gauge ports for easy service diagnostics Easy to install plug-in, slip-in, 100% fully modulating economizer with barometric relief Forkable base rails for easy handling and lifting One-point electrical connections Direct drive or high performance belt drive motor with variable pitch pulleys and quick adjust belt system Permanently lubricated evaporator and condenser motors
Rheem® RJPL-A060CK000 Heat Pump Package Unit, 5 ton Nominal, 59500 Btu/hr Heating, 208/230 VAC, 25 A, 2000 cfm
BrandRheem®
MFG #RJPL-A060CK000
Keller #985287
My Part ##
Last Ordered#
$13,040.57 / ea
