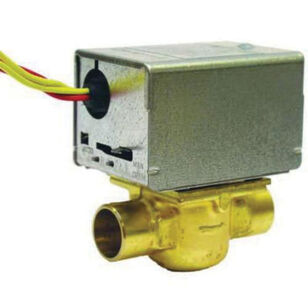

Honeywell V8043 Series V8043E1012/U Valve, 3/4 in, C, 3.5 Cv, Brass
Honeywell V8043 Series V8043E1012/U Valve, 3/4 in, C, 3.5 Cv, Brass
Honeywell Valve, V8043 Series, 3/4 in Nominal, C Connection, Number of Ways/Position: 2-Ways, 125 psi, 3.5 Cv Flow Coefficient (Cv), Brass, 0.32 A, 24 VAC, 50 to 200 deg F, 4 in H x 3-1/2 in W x 2-3/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$323.72Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
Brandresideo
Amperage Rating0.32
Connection TypeC
Dimensions4 " H x 3-1/2 " W x 2-3/8 " D
Flow Coefficient (Cv)3.5
IndustryHVAC
MaterialBrass
Nominal Size3/4
Number of Ways/Position2-Ways
Pressure Rating125
SeriesV8043 Series
Temperature Rating50 to 200
Voltage Rating24
Features & Benefits
- Two way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure, valve returns to automatic position when power is restored All model may be installed without disassembling the valve Compact construction for easy installation Complete power head may be removed or replaced without breaking plumbing line connections or draining the system Actuator motor may be replaced without removing the valve body or draining the system
Honeywell V8043 Series V8043E1012/U Valve, 3/4 in, C, 3.5 Cv, Brass
Brandresideo
MFG #V8043E1012/U
Keller #98611
My Part ##
Last Ordered#
$323.72Â /Â ea
