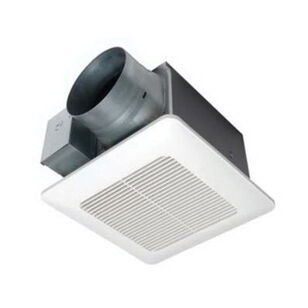

Panasonic FV-1115VQ1 Ventilation Fan, 11.8 W, 120 VAC, 0.19 A, 0.31 A Maximum, 26 ga Zinc-Aluminum Magnesium
MFG #FV-1115VQ1
Item #987643
Mfr. Part #FV-1115VQ1
UPC #885170324947
Panasonic Ventilation Fan, 120 VAC, 0.19 A, 0.31 A Maximum, 60 Hz, 11.8 W, 26 ga Zinc-Aluminum Magnesium, Ceiling Mounting, 10-1/4 in Length, 10-1/4 in Width, 7-3/8 in Height, 13 in L x 13 in W Grille, 150 cfm at 0.1 in SP, 6 in Duct, Motor Specifications: ECM Motor, 1 Speed, 1 Phase, 698 rpm
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$327.00Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandPanasonic
Amperage Rating0.19 A, 0.31 A Maximum
CFM Rating150 cfm at 0.1 " SP
Duct Size6
Frequency Rating60
Grille Size13 " L x 13 " W
Height7/3/2008
IndustryHVAC
Length10/1/2004
Material26 ga Zinc-Aluminum Magnesium
Motor SpecificationsECM Motor
Mounting TypeCeiling
Number of Speeds1
Phase1
Power Rating11.8
Speed Rating698
Voltage Rating120
Warranty3 Year All Parts, 6 Year Motor
Width10/1/2004
Additional Information
California Title 24 Compliant|Energy Star Certified|HVI 2100 Certified|ISO 9001cUL/US Listed
Features & Benefits
Revolutionary ECM motor with SmartFlow technology for optimum cu-ft/min output
Pick-A-Flow speed selector (50-80-110 cu-ft/min) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
Flex-Z fast bracket provides flexible, fast and trouble-free installation, even from below the ceiling
Lighted models incorporate one long-life, 10 W dimmable LED chip panel with less than 1 W LED night light for warm, energy efficient illumination
Elegant grille design compliments the aesthetics of any bathroom
Enclosed brushless ECM motor technology rated for continuous run
Motor equipped with thermal cut-off fuse
Removable with permanently lubricated plug-in motor
Built-in damper reduces back drafting and helps with blower door testing
Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
Attractive design using poly pro material grille
Attaches directly to housing with torsion springs
WhisperCeiling DC precision spot ventilation fan with built-in Pick-A-Flow speed selector switch allows you to select your required airflow (50-80-110 cfm). Features an ECM motor with SmartFlow technology and a Flex-Z fast installation bracket. Can be used to comply with the latest codes and standards.
Panasonic FV-1115VQ1 Ventilation Fan, 11.8 W, 120 VAC, 0.19 A, 0.31 A Maximum, 26 ga Zinc-Aluminum Magnesium
