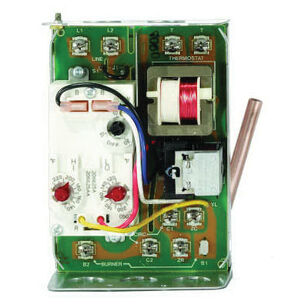

Honeywell L8124L1011 Triple Aquastat Relay, SPST, Horizontal Mounting
Honeywell L8124L1011 Triple Aquastat Relay, SPST, Horizontal Mounting
Honeywell Triple Aquastat Relay, SPST, 14 Fins per Inch, 4 Rows, Horizontal Mount, -30 to 150 deg F at Switch, 265 deg F at Sensing Element, 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit Operating, 10 deg F Fixed High Limit, 10 to 25 deg F Adjustable Low Limit Differential, 6-1/8 in L x 3-1/16 in W x 4-3/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$988.25Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Contact ConfigurationSPST
Dimensions6-1/8 " L x 3-1/16 " W x 4-3/8 " H
Fins per Inch14
IndustryHVAC
Mounting TypeHorizontal
Number of Rows4
Temperature Rating-30 to 150 deg F at Switch, 265 deg F at Sensing Element, 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit Operating, 10 deg F Fixed High Limit, 10 to 25 deg F Adjustable Low Limit Differential
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E) Include diaphragm powerhead and micro switch assembly that respond to temperature changes in boiler water Mount directly to boiler Provide multi-zone control by using a separate circulator and R845 relay for each zone Electrical burner rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC full load; 44.4 A at 120 VAC, 22.7 A at 240 VAC locked rotor Electrical circulator rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC full load; 44.4 A at 120 VAC, 22.2 A at 240 VAC locked rotor
Documents
Honeywell L8124L1011 Triple Aquastat Relay, SPST, Horizontal Mounting
BrandHoneywell
MFG #L8124L1011/U
Keller #987721
