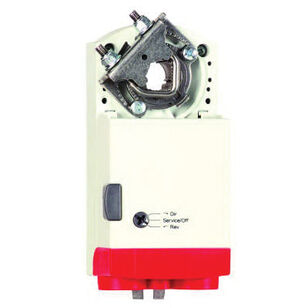

Honeywell Valve Actuator, Number of Ways/Position: 2-Position, 1 mA, 24 VAC, 50/60 Hz, VA Rating: 5 VA, SPDT, 22 to 14 AWG Enclosed Screw Terminal Strip Electrical Connection, Declutch Mechanism Operator, 95 s Timing, 80 in-lb Torque, 35 dBA Noise Level, NEMA 2, IP54 Enclosure, Plastic Body, -5 to 140 deg F, 5.23 in H x 2.6 in W x 2.44 in D
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$383.69Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandHoneywell
Amperage Rating1
Body MaterialPlastic
ConfigurationSPDT
Dimensions5.23 " H x 2.6 " W x 2.44 " D
Electrical Connection22 to 14 AWG Enclosed Screw Terminal Strip
Integral 1/2 in NPSM conduit connection
Tradeline value
IP54 environmental, electrical or ingress protection rating
1/4 to 1/2 in square or 3/8 to 5/8 in round shaft dimension
Damper, valve actuator
SSW2-1M external auxiliary switch
Rotation to open by switch
Dual integral adjustment stops (3 deg increments) rotational stroke adjustment
U-bolt clamp shaft adapter
Floating, 2 to 10 VDC (4 to 20 mA with 500 Ohm resistor), SPDT, on/off control signal
