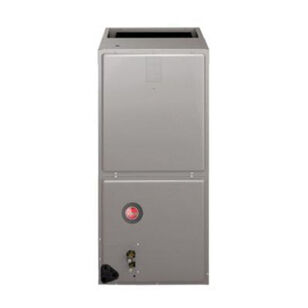

Rheem® RKNL, Classic Series RH2V3621MTANJA Air Handler With TEV Metering, 3 ton, 36000 Btu/hr BTU, 825 cfm, 1200 cfm
Rheem® RKNL, Classic Series RH2V3621MTANJA Air Handler With TEV Metering, 3 ton, 36000 Btu/hr BTU, 825 cfm, 1200 cfm
Rheem® Air Handler, RH2V Series, 3 ton Nominal Capacity, 36000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 3.4 A Circuit, 4 A Minimum Circuit Amperage Rating, 10.55 kW Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 825 cfm, 1200 cfm Rating, 16 SEER Rating, R-410A Refrigerant Type, 15 A Fuse Rating, 2 Number of Stages, Steel, Pre-Painted, 21 in W x 21-11/16 in D x 50-1/2 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,781.10 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating3.4 A Circuit, 4 A Minimum Circuit
ApplicationFor upflow, downflow, horizontal left and horizontal right applications
BTU Rating36000
CFM Rating825 cfm, 1200 cfm
Dimensions21 " W x 21-11/16 " D x 50-1/2 " H
FinishPre-Painted
Frequency Rating60
Fuse Rating15
HP Rating1/2
MaterialSteel
Nominal Capacity3
Number of Stages2
Phase1
Refrigerant TypeR-410A
SEER Rating16
SeriesRH2V
Voltage Rating208/240
Wattage10.55
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance Four leg blower motor mount, blower housing with controls, motor and blower, slide-out design for service and maintenance convenience Field convertible for vertical downflow, horizontal left hand or right hand air supply Combustible floor base accessories fit all model sizes when required for downflow installations on combustible floors Indoor coil design provides low air side pressure drop, high performance and extremely compact size, all coils come with PVC condensate elbow standard Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Coils utilize chatleff metering device connections Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Supply duct flanges provided as standard on air handler cabinet Provisions for field electrical connections available from either side or top of the air handler cabinet Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, installer may pull desired hole size upto 2 in for 1-1/2 in conduit Front refrigerant and drain connections ECM blower motor 1st major Series 1st minor Series 19-3/8 in W x 19-3/4 in D return air opening
