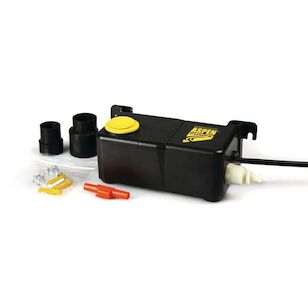

RectorSeal® FP1086/RS 83941 Mini Tank Condensate Removal Pump, 208 - 230 V, 0.15 to 0.28 A, 8 gph
RectorSeal® FP1086/RS 83941 Mini Tank Condensate Removal Pump, 208 - 230 V, 0.15 to 0.28 A, 8 gph
RectorSeal® Mini Tank Condensate Removal Pump, Model: FP1086/RS, 208 - 230 V, 0.15 to 0.28 A, 21 W, 60 Hz, 8 gph Flow Rate, 0.24 L Capacity, 157000 Btu/hr, Shut-Off Head: 49 ft, 39 in Cord, 3 A NC Contact Rating, 35 dBA Sound Level, 104 deg F, 8-1/4 in L x 3-1/2 in W x 2-3/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$589.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRectorSeal®
Amperage Rating0.15 to 0.28
BTU Rating157000
Capacity0.24
Contact Rating3 A NC
Cord Size39
Dimensions8-1/4 " L x 3-1/2 " W x 2-3/4 " H
Flow Rate8
Frequency Rating60
IndustryPlumbing
ModelFP1086/RS
Power Rating21
Shut-Off Head49
Sound Level35
Temperature Rating104
Voltage Rating208 - 230
Additional Information
cCSAus Certified
Features & Benefits
- High performance piston technology, Includes anti-siphon device and Thermal protection Accepts standard 5/8" drain hose from any mini-split, Extra large reservoir capacity minimizes pump operation Components clip apart for easy access to reservoir and filter, No need to disturb evaporator to clean filter Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194) 3A N/C dry contacts rated @ 5A inductive @ 230V AC
Documents
Marketing Information
The Mini Tank is the first tank pump specially made for HVAC/R use. It can be wall-mounted, set in-pan or suspended on (M8)5/16"/ (M10)3/8" threaded rod & is easily serviced. Using piston technology, it is a compact, powerful, multifunction pump.
RectorSeal® FP1086/RS 83941 Mini Tank Condensate Removal Pump, 208 - 230 V, 0.15 to 0.28 A, 8 gph
BrandRectorSeal®
MFG #83941
Keller #991407
My Part ##
Last Ordered#
$589.02 / ea
